PM5022S-331M-RC

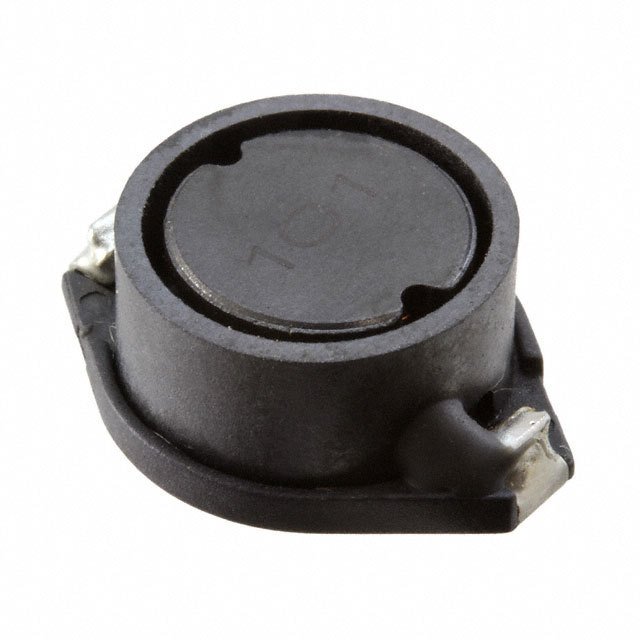

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM5022S-331M-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM5022S-331M-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM5022S-331M-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 330UH 800MA 790 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.264 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM5022S-331M-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 330UH 800MA 790 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90588 pcs | Data sheet | PM5022S Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Shielding | Shielded |
| Series | PM5022S | Ratings | - |
| Q @ Freq | 30 @ 796kHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 330µH | Height - Seated (Max) | 0.280" (7.10mm) |
| Frequency - Self Resonant | 3MHz | Detailed Description | 330µH Shielded Wirewound Inductor 800mA 790 mOhm Nonstandard |
| DC Resistance (DCR) | 790 mOhm | Current Rating | 800mA |
| Current - Saturation | 1.4A |
