PM5022-100M-RC

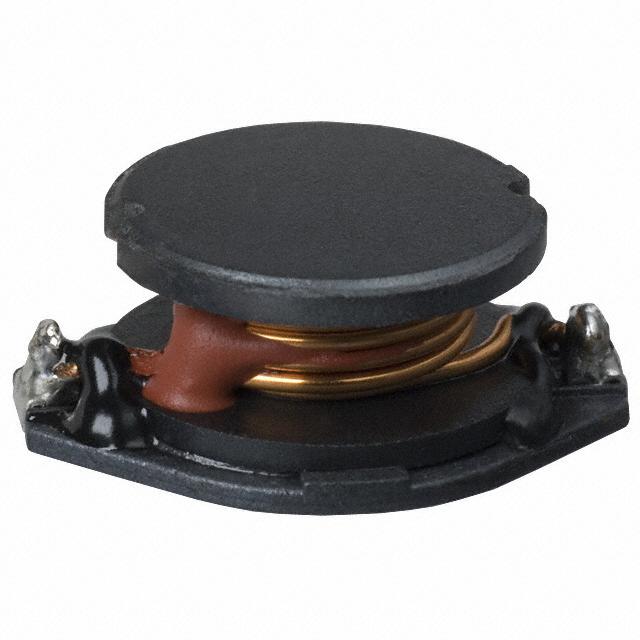

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM5022-100M-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM5022-100M-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM5022-100M-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 10UH 5.3A 25 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | 1250 pcs | |
|---|---|---|---|---|---|
| $0.194 | $0.167 | $0.157 | $0.148 | ||
| 2500 pcs | 6250 pcs | 12500 pcs | 25000 pcs | ||
| $0.144 | $0.139 | $0.134 | $0.13 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM5022-100M-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 10UH 5.3A 25 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 161337 pcs | Data sheet | PM5022 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.720" L x 0.551" W (18.30mm x 14.00mm) | Shielding | Unshielded |
| Series | PM5022 | Ratings | - |
| Q @ Freq | 22 @ 25MHz | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | M8597TR PM5022100MRC |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.272" (6.90mm) | Frequency - Self Resonant | 2.52MHz |
| Detailed Description | 10µH Unshielded Wirewound Inductor 5.3A 25 mOhm Nonstandard | DC Resistance (DCR) | 25 mOhm |
| Current Rating | 5.3A | Current - Saturation | 10A |
