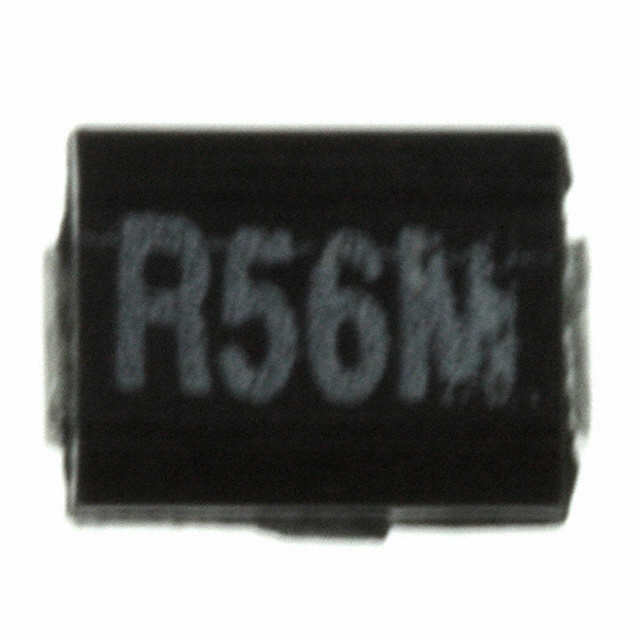

PM40-R56M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM40-R56M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM40-R56M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM40-R56M |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 560NH 450MA 550 MOHM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM40-R56M | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 560NH 450MA 550 MOHM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4070 pcs | Data sheet | PM40 Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±20% | Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Shielding | Unshielded |
| Series | PM40 | Ratings | - |
| Q @ Freq | 30 @ 25.2MHz | Packaging | Tape & Reel (TR) |
| Package / Case | 1812 (4532 Metric) | Other Names | M1110TR |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Non-Magnetic |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inductance Frequency - Test | 25.2MHz |
| Inductance | 560nH | Height - Seated (Max) | 0.126" (3.20mm) |
| Frequency - Self Resonant | 180MHz | Detailed Description | 560nH Unshielded Molded Inductor 450mA 550 mOhm Max 1812 (4532 Metric) |
| DC Resistance (DCR) | 550 mOhm Max | Current Rating | 450mA |
| Current - Saturation | - |
