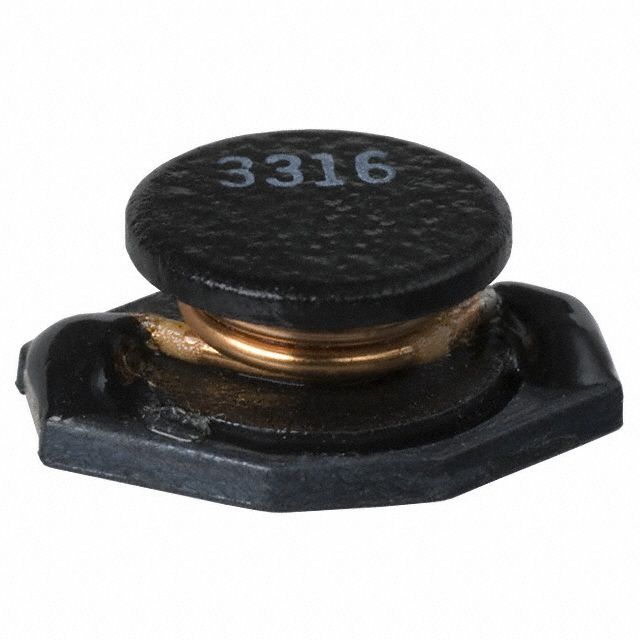

PM3316-102M-RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM3316-102M-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM3316-102M-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM3316-102M-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 1MH 300MA 3.9 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.444 | $0.413 | $0.299 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM3316-102M-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 1MH 300MA 3.9 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67404 pcs | Data sheet | PM3316 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.394" W (12.70mm x 10.00mm) | Shielding | Unshielded |
| Series | PM3316 | Ratings | - |
| Q @ Freq | 81 @ 70kHz | Packaging | Original-Reel® |
| Package / Case | Nonstandard | Other Names | M8575DKR |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1kHz | Inductance | 1mH |
| Height - Seated (Max) | 0.209" (5.30mm) | Frequency - Self Resonant | 2MHz |
| Detailed Description | 1mH Unshielded Wirewound Inductor 300mA 3.9 Ohm Nonstandard | DC Resistance (DCR) | 3.9 Ohm |
| Current Rating | 300mA | Current - Saturation | 350mA |
