PM2120-6R8M-RC

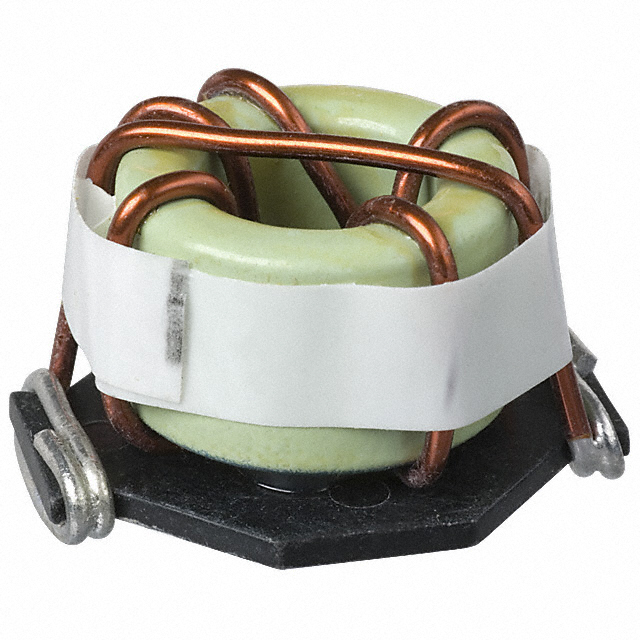

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM2120-6R8M-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM2120-6R8M-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM2120-6R8M-RC |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | FIXED IND 6.8UH 14.7A 6 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.878 | $0.805 | $0.732 | $0.615 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.527 | $0.498 | $0.487 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM2120-6R8M-RC | Manufacturer | Bourns Inc. |
|---|---|---|---|
| Description | FIXED IND 6.8UH 14.7A 6 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74577 pcs | Data sheet | PM2120 Series |
| Category | Inductors, Coils, Chokes | Voltage - Breakdown | - |
| Usage | Unshielded | Type | Toroidal |
| Size / Dimension | 1.200" L x 1.000" W (30.50mm x 25.40mm) | Series | PM2120 |
| RoHS Status | Bulk | Ratings | - |
| Polarization | Nonstandard | Other Names | M8780 PM21206R8MRC |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 15 Weeks |
| Manufacturer Part Number | PM2120-6R8M-RC | Height - Seated (Max) | 0.820" (20.83mm) |
| Hardware Type | 6.8µH | Frequency - Test | - |
| Frequency - Self Resonant | 6 mOhm Max | Expanded Description | 6.8µH Unshielded Toroidal Inductor 14.7A 6 mOhm Max Nonstandard |
| ESR (Equivalent Series Resistance) | ±20% | Diameter - Shoulder | - |
| Description | FIXED IND 6.8UH 14.7A 6 MOHM SMD | Delay Time | 1kHz |
| DC Resistance (DCR) | - | Current Rating | 14.7A |
| Current - Saturation | Iron |
