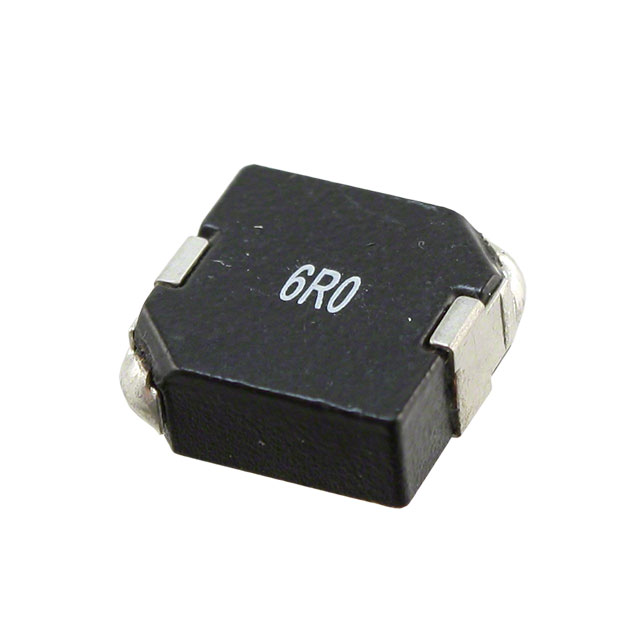

PM13560S-6R0M-RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM13560S-6R0M-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM13560S-6R0M-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM13560S-6R0M-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 6UH 9.5A 10 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.428 | $0.39 | $0.377 | $0.365 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM13560S-6R0M-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 6UH 9.5A 10 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105876 pcs | Data sheet | PM12645S-13666S Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.547" L x 0.531" W (13.90mm x 13.50mm) | Shielding | Shielded |
| Series | PM13560S | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | M8501TR PM13560S6R0MRC |
| Operating Temperature | -55°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 6µH |
| Height - Seated (Max) | 0.232" (5.90mm) | Frequency - Self Resonant | - |
| Detailed Description | 6µH Shielded Wirewound Inductor 9.5A 10 mOhm Max Nonstandard | DC Resistance (DCR) | 10 mOhm Max |
| Current Rating | 9.5A | Current - Saturation | 14A |
