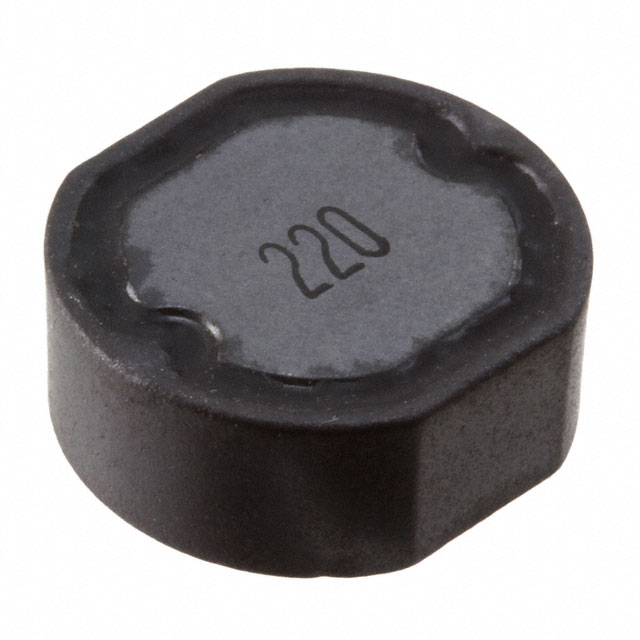

PM125S-220M-RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PM125S-220M-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PM125S-220M-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PM125S-220M-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 22UH 2.2A 70 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PM125S-220M-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 22UH 2.2A 70 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5557 pcs | Data sheet | PM125S Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.496" L x 0.457" W (12.60mm x 11.60mm) | Shielding | Shielded |
| Series | PM125S | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | PM125S-220M-RCCT |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 2.52MHz |
| Inductance | 22µH | Height - Seated (Max) | 0.232" (5.90mm) |
| Frequency - Self Resonant | 15MHz | Detailed Description | 22µH Shielded Wirewound Inductor 2.2A 70 mOhm Max Nonstandard |
| DC Resistance (DCR) | 70 mOhm Max | Current Rating | 2.2A |
| Current - Saturation | 4.04A |
