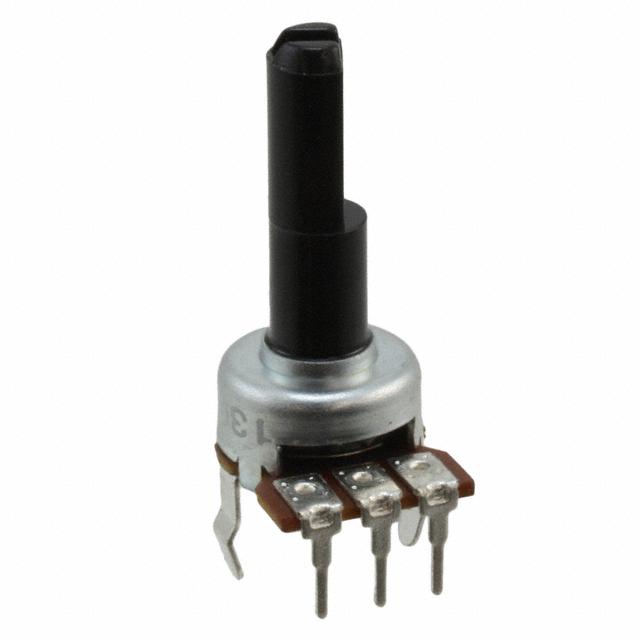

PDB12-H4301-105BF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PDB12-H4301-105BF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PDB12-H4301-105BF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PDB12-H4301-105BF |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | POT 1M OHM 0.08W CARBON LINEAR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.361 | $0.319 | $0.287 | $0.276 | $0.266 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.25 | $0.213 | $0.197 | $0.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PDB12-H4301-105BF | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | POT 1M OHM 0.08W CARBON LINEAR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 145721 pcs | Data sheet | PDB12 Series |
| Category | Potentiometers, Variable Resistors | Tolerance | ±20% |
| Termination Style | PC Pins, Board Locks | Temperature Coefficient | - |
| Taper | Linear | Size - Body | Square - 0.504" x 0.488" Face x 0.342" H (12.80mm x 12.40mm x 8.70mm) |
| Series | PDB12 | Rotation | 300° |
| Resistive Material | Carbon | Resistance (Ohms) | 1M |
| Power (Watts) | 0.08W | Packaging | Tray |
| Other Names | PDB12H4301105BF | Number of Turns | 1 |
| Number of Gangs | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 1M Ohm 1 Gang Linear Through Hole Potentiometer None 1 Turn Carbon 0.08W PC Pins, Board Locks |
| Bushing Thread | - | Built in Switch | None |
| Adjustment Type | Top Adjustment | Actuator Type | Flatted |
| Actuator Length | 1.181" (30.00mm) | Actuator Diameter | 0.236" (6.00mm) |
