Home > Products > Circuit Protection > TVS - Diodes > P4SMA16A

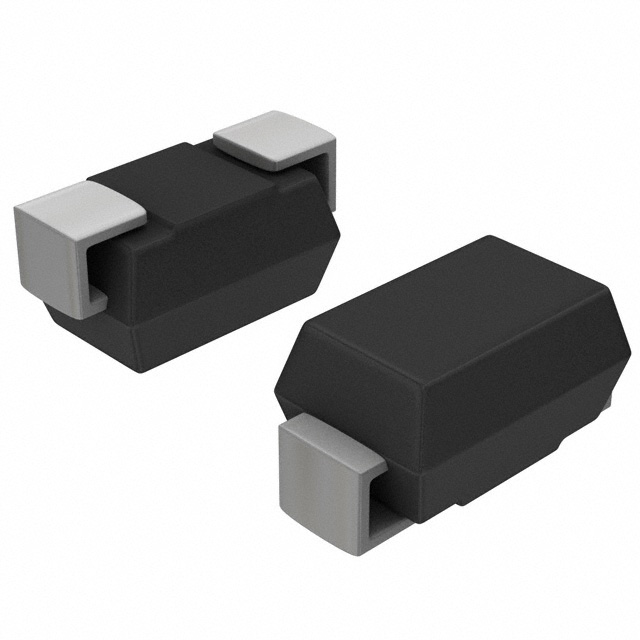

P4SMA16A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P4SMA16A with confidence from Components-World.HK, 1 Year Warranty

Dowload P4SMA16A Details in PDF

Request a Quote

Part Number	P4SMA16A
Manufacturer	Bourns Inc.
Description	TVS DIODE 13.6VWM 22.5VC DO214AC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 971140 pcs
Reference Price (In US Dollars)	5000 pcs	10000 pcs	25000 pcs	50000 pcs	65535 pcs
Reference Price (In US Dollars)	$0.033	$0.03	$0.029	$0.026	$0.025

Product parameter
Data sheet

Product parameter

Part Number	P4SMA16A	Manufacturer	Bourns Inc.
Description	TVS DIODE 13.6VWM 22.5VC DO214AC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	971140 pcs	Data sheet	P4SMA Series
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	1
Voltage - Clamping (Max) @ Ipp	15.2V	Voltage - Breakdown (Min)	13.6V
Voltage - Breakdown	DO-214AC (SMA)	Type	Zener
Series	-	RoHS Status	Tape & Reel (TR)
Ripple Current - Low Frequency	General Purpose	Power Line Protection	400W
Power - Peak Pulse	18.2A	Polarization	DO-214AC, SMA
Other Names	P4SMA16ABB P4SMA16ABB-ND P4SMA16ABBTR	Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Manufacturer Part Number	P4SMA16A
Description	TVS DIODE 13.6VWM 22.5VC DO214AC	Current - Peak Pulse (10/1000µs)	22.5V
Capacitance @ Frequency	-	Bidirectional Channels	No
