Home > Products > Circuit Protection > PTC Resettable Fuses > MF-SD013/250-2

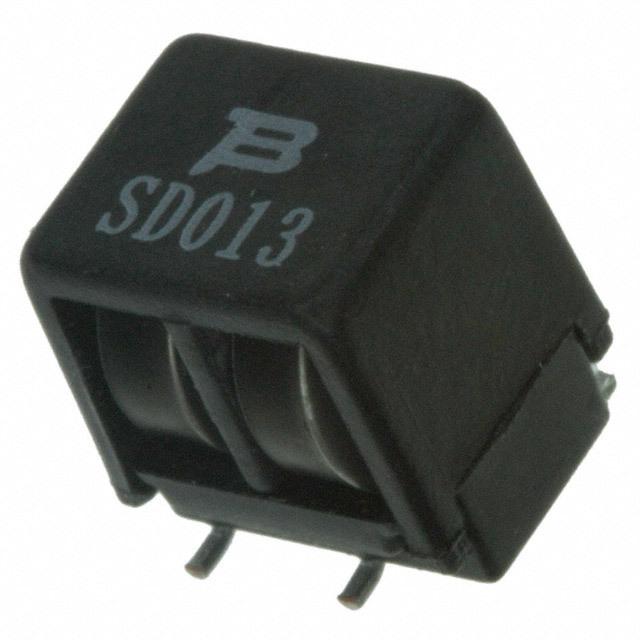

MF-SD013/250-2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MF-SD013/250-2 with confidence from Components-World.HK, 1 Year Warranty

Dowload MF-SD013/250-2 Details in PDF

Request a Quote

Part Number	MF-SD013/250-2
Manufacturer	Bourns, Inc.
Description	PTC RESET FUSE 60V 130MA 4SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 101699 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$0.613	$0.584	$0.555	$0.448	$0.38

Product parameter
Data sheet

Product parameter

Part Number	MF-SD013/250-2	Manufacturer	Bourns, Inc.
Description	PTC RESET FUSE 60V 130MA 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	101699 pcs	Data sheet	MF-SD/250 Series
Category	Circuit Protection	Voltage - Max	60V (250V Int)
Type	Polymeric	Time to Trip	2.5s
Thickness (Max)	0.402" (10.20mm)	Size / Dimension	0.350" L x 0.283" W (8.90mm x 7.20mm)
Series	Multifuse®, MF-SD	Resistance - Post Trip (R1) (Max)	10 Ohms
Resistance - Initial (Ri) (Min)	2 Ohms	Ratings	-
Packaging	Original-Reel®	Package / Case	4-SMD Cube
Other Names	MF-SD013/250-2DKR	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Detailed Description	Polymeric PTC Resettable Fuse 60V (250V Int) 130mA Ih Surface Mount 4-SMD Cube	Current - Trip (It)	260mA
Current - Max	3A	Current - Hold (Ih) (Max)	130mA
Approvals	UR
