EMI220T-RC

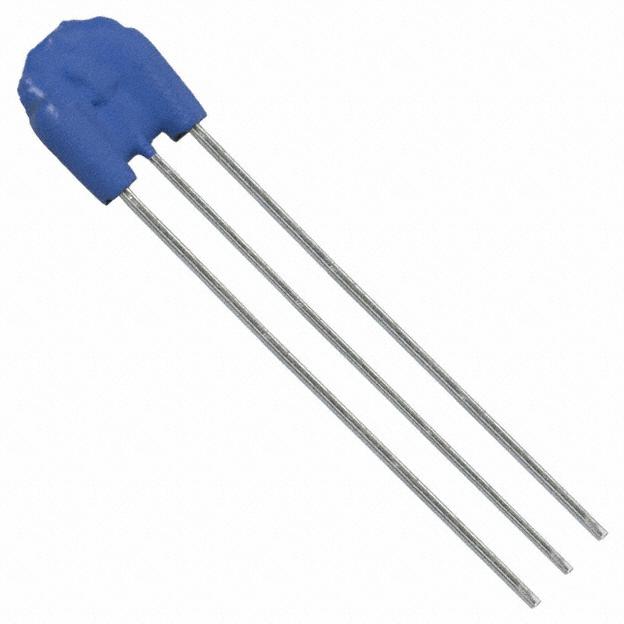

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMI220T-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EMI220T-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMI220T-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FILTER LC(T) 0.05 OHM/22PF TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 50000 pcs |
|---|---|---|---|---|---|
| $0.087 | $0.083 | $0.078 | $0.073 | $0.068 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | EMI220T-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FILTER LC(T) 0.05 OHM/22PF TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 316761 pcs | Data sheet | EMI_T Series |
| Category | Filters | Voltage - Rated | 50V |
| Values | R = 0.05 Ohms, C = 22pF | Type | Low Pass |
| Technology | LC (T-Type) | Size / Dimension | 0.354" L x 0.126" W (9.00mm x 3.20mm) |
| Series | EMIT | Resistance - Channel (Ohms) | 0.05 |
| Packaging | Tape & Box (TB) | Package / Case | Radial - 3 Leads |
| Other Names | EMI220T-LF EMI220TRC M9936TB |
Operating Temperature | -25°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.315" (8.00mm) |
| Filter Order | 3rd | ESD Protection | No |
| Detailed Description | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel R = 0.05 Ohms, C = 22pF 5A Radial - 3 Leads | Current | 5A |
| Center / Cutoff Frequency | - | Attenuation Value | 25dB @ 800MHz ~ 1GHz |
| Applications | General Purpose |
