CMH322522-56NML

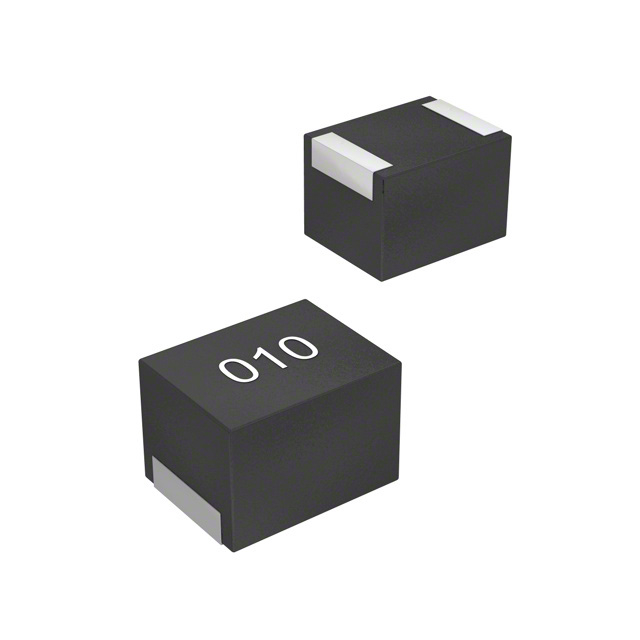

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMH322522-56NML with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMH322522-56NML with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMH322522-56NML |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 56NH 450MA 330 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMH322522-56NML | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 56NH 450MA 330 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4963 pcs | Data sheet | CMH322522 Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | Shielding | Shielded |
| Series | CMH322522 | Ratings | - |
| Q @ Freq | 26 @ 100MHz | Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100MHz | Inductance | 56nH |
| Height - Seated (Max) | 0.094" (2.40mm) | Frequency - Self Resonant | 1.1GHz |
| Detailed Description | 56nH Shielded Wirewound Inductor 450mA 330 mOhm Max 1210 (3225 Metric) | DC Resistance (DCR) | 330 mOhm Max |
| Current Rating | 450mA | Current - Saturation | - |
