CI100505-5N6D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CI100505-5N6D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CI100505-5N6D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CI100505-5N6D |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 5.6NH 300MA 230 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.008 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CI100505-5N6D | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 5.6NH 300MA 230 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2999541 pcs | Data sheet | CI100505 Series |
| Category | Inductors, Coils, Chokes | Type | Multilayer |
| Tolerance | ±0.3nH | Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Shielding | Unshielded |
| Series | CI100505 | Ratings | - |
| Q @ Freq | 8 @ 100MHz | Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ceramic | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100MHz |
| Inductance | 5.6nH | Height - Seated (Max) | 0.022" (0.55mm) |
| Frequency - Self Resonant | 4GHz | Detailed Description | 5.6nH Unshielded Multilayer Inductor 300mA 230 mOhm Max 0402 (1005 Metric) |
| DC Resistance (DCR) | 230 mOhm Max | Current Rating | 300mA |
| Current - Saturation | - |
- Related products
- Related news
Related products
- Part#:

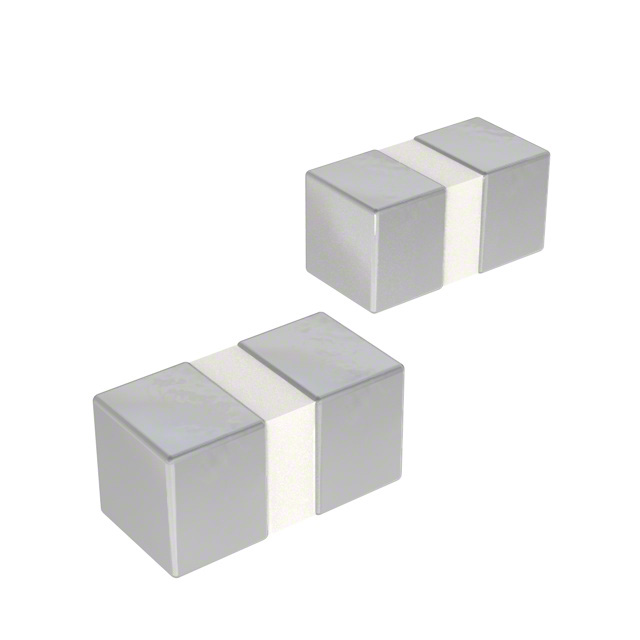

CI100505-R10J - Manufacturers:
