CDDFN10-0524P

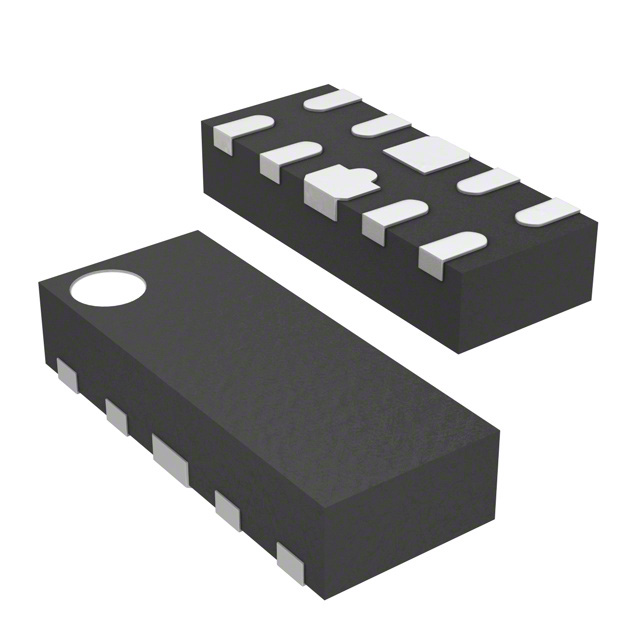

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDDFN10-0524P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDDFN10-0524P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDDFN10-0524P |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | TVS DIODE 5V 12V 10DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.475 | $0.422 | $0.382 | $0.334 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.293 | $0.259 | $0.204 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDDFN10-0524P | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | TVS DIODE 5V 12V 10DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 105853 pcs | Data sheet | PN-DESIGNKIT-57CDDFN10-0524P |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 12V (Typ) | Voltage - Breakdown (Min) | 6V |
| Unidirectional Channels | 4 | Type | Steering (Rail to Rail) |
| Supplier Device Package | 10-DFN (2.5x1) | Series | - |
| Power Line Protection | Yes | Power - Peak Pulse | 30W |
| Packaging | Cut Tape (CT) | Package / Case | 10-UFDFN |
| Other Names | CDDFN10-0524PCT | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 3.8A (8/20µs) | Capacitance @ Frequency | - |
| Applications | HDMI |
