8121
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8121 with confidence from Components-World.HK, 1 Year Warranty
Dowload 8121 Details in PDFSee Product Specifications for product details.
Buy 8121 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8121 |
|---|---|
| Manufacturer | Bourns, Inc. |

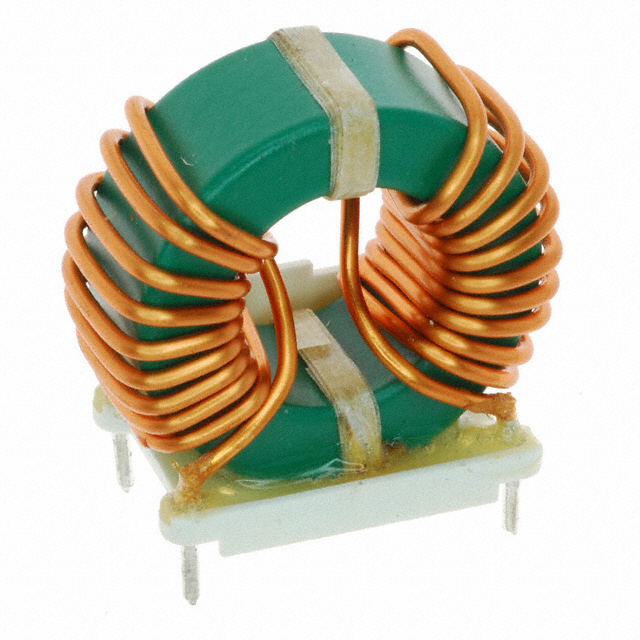

| Description | COMMON MODE CHOKE 1MH 20A 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8121 | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1MH 20A 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3989 pcs | Data sheet | 8100 Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 1.700" L x 0.900" W (43.18mm x 22.86mm) |
| Series | 8100 | Ratings | - |
| Packaging | Tray | Package / Case | Vertical, 4 PC Pin |
| Other Names | M9856 | Operating Temperature | -55°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Inductance @ Frequency | 1mH @ 1kHz | Height (Max) | 1.650" (41.91mm) |
| Filter Type | - | Features | - |
| Detailed Description | 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 20A DCR 7 mOhm | DC Resistance (DCR) (Max) | 7 mOhm |
| Current Rating (Max) | 20A | Approvals | - |
