78FR56K-RC

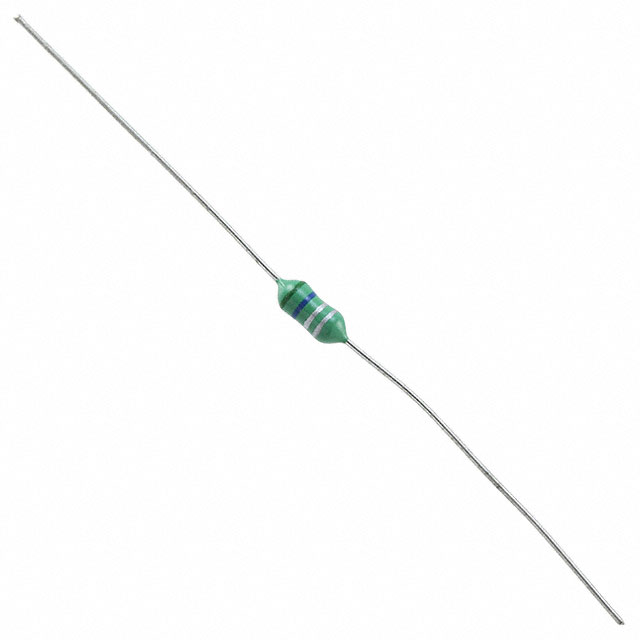

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 78FR56K-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 78FR56K-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 78FR56K-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 560NH 950MA 120 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.095 | $0.083 | $0.057 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.049 | $0.038 | $0.035 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 78FR56K-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 560NH 950MA 120 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 678387 pcs | Data sheet | 78F Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | Shielding | Unshielded |
| Series | 78F | Ratings | - |
| Q @ Freq | 40 @ 25MHz | Packaging | Bulk |
| Package / Case | Axial | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 25MHz |
| Inductance | 560nH | Height - Seated (Max) | - |
| Frequency - Self Resonant | 245MHz | Detailed Description | 560nH Unshielded Wirewound Inductor 950mA 120 mOhm Max Axial |
| DC Resistance (DCR) | 120 mOhm Max | Current Rating | 950mA |
| Current - Saturation | - |
