78F561J-RC

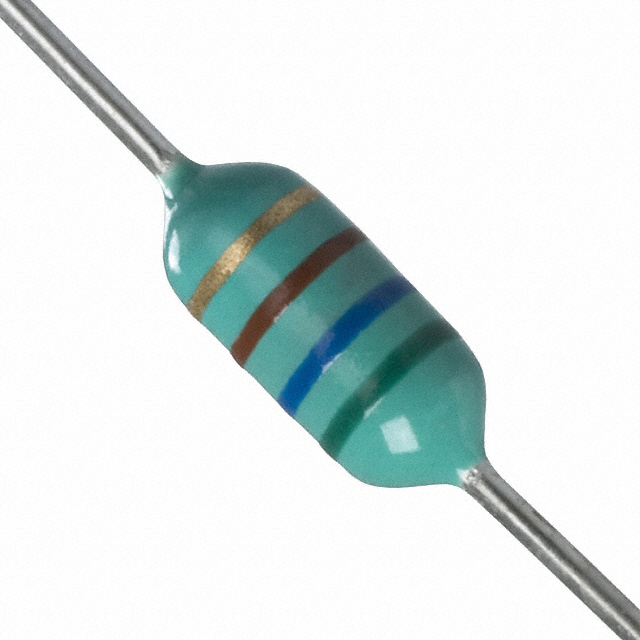

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 78F561J-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 78F561J-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 78F561J-RC |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 560UH 85MA 15.5 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.031 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 78F561J-RC | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 560UH 85MA 15.5 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 769762 pcs | Data sheet | 78F Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±5% | Supplier Device Package | Axial |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | Shielding | Unshielded |
| Series | 78F | Ratings | - |
| Q @ Freq | 60 @ 790kHz | Packaging | Bulk |
| Package / Case | Axial | Other Names | M8155 |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 790kHz | Inductance | 560µH |
| Height - Seated (Max) | - | Frequency - Self Resonant | 2.35MHz |
| Detailed Description | 560µH Unshielded Wirewound Inductor 85mA 15.5 Ohm Max Axial | DC Resistance (DCR) | 15.5 Ohm Max |
| Current Rating | 85mA | Current - Saturation | - |
