70F686AI

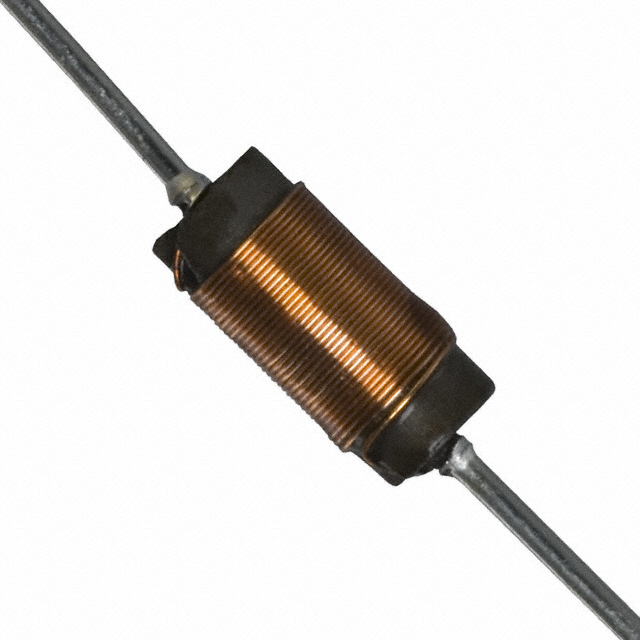

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 70F686AI with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 70F686AI with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 70F686AI |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | FIXED IND 6.8UH 566MA 624 MOHM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 70F686AI | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | FIXED IND 6.8UH 566MA 624 MOHM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5979 pcs | Data sheet | 70F Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | Axial |
| Size / Dimension | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | Shielding | Unshielded |
| Series | 70F | Ratings | - |
| Q @ Freq | 40 @ 7.9MHz | Packaging | Bulk |
| Package / Case | Axial | Other Names | M76R8 |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inductance Frequency - Test | 7.9MHz |
| Inductance | 6.8µH | Height - Seated (Max) | - |
| Frequency - Self Resonant | 49MHz | Detailed Description | 6.8µH Unshielded Wirewound Inductor 566mA 624 mOhm Max Axial |
| DC Resistance (DCR) | 624 mOhm Max | Current Rating | 566mA |
| Current - Saturation | - |
