3547S-1BA-501A

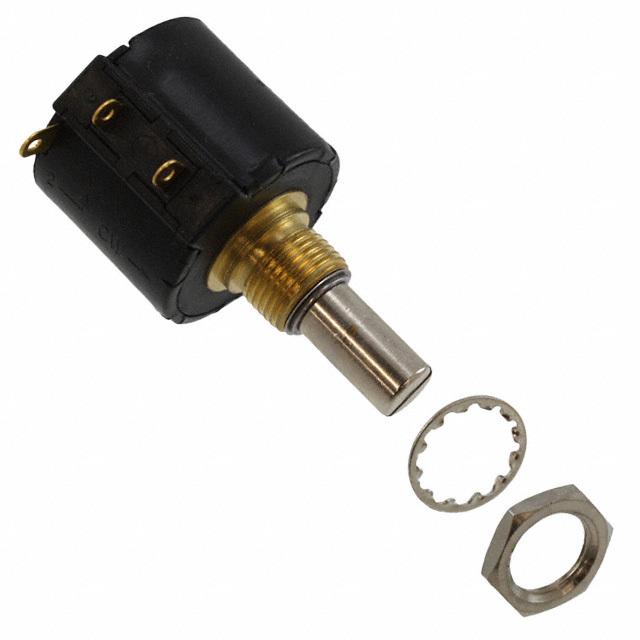

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3547S-1BA-501A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3547S-1BA-501A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3547S-1BA-501A |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | POT 500 OHM 1W WIREWOUND LINEAR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3547S-1BA-501A | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | POT 500 OHM 1W WIREWOUND LINEAR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4034 pcs | Data sheet | 3547 Series |
| Category | Potentiometers, Variable Resistors | Tolerance | ±3% |
| Termination Style | Solder Lug | Temperature Coefficient | ±50ppm/°C |
| Taper | Linear | Size - Body | Round - 0.885" Dia x 0.780" H (22.48mm x 19.81mm) |
| Series | 3547 | Rotation | 1080° |
| Resistive Material | Wirewound | Resistance (Ohms) | 500 |
| Power (Watts) | 1W | Packaging | Tray |
| Number of Turns | 3 | Number of Gangs | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 500 Ohm 1 Gang Linear Panel Mount Potentiometer None 3 Turn Wirewound 1W Solder Lug |
| Bushing Thread | 3/8-32 | Built in Switch | None |
| Adjustment Type | User Defined | Actuator Type | Slotted |
| Actuator Length | 0.813" (20.64mm) | Actuator Diameter | 0.250" (6.35mm) |
