3306F-1-501

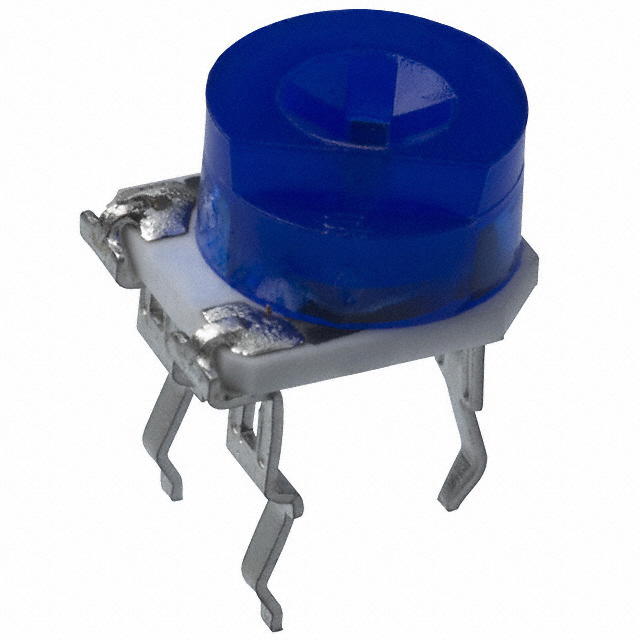

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3306F-1-501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3306F-1-501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3306F-1-501 |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | TRIMMER 500 OHM 0.2W PC PIN TOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.156 | $0.145 | $0.13 | $0.126 | $0.122 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.113 | $0.104 | $0.098 | $0.074 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3306F-1-501 | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | TRIMMER 500 OHM 0.2W PC PIN TOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 278272 pcs | Data sheet | 3306 Series |
| Category | Potentiometers, Variable Resistors | Tolerance | ±25% |
| Termination Style | PC Pins | Temperature Coefficient | ±250ppm/°C |
| Size / Dimension | Rectangular - 0.319" x 0.268" Face x 0.300" H (8.10mm x 6.81mm x 7.62mm) | Series | Trimpot® 3306 - Open Frame |
| Resistive Material | Cermet | Resistance | 500 Ohms |
| Power (Watts) | 0.2W, 1/5W | Packaging | Bulk |
| Other Names | 3306F-501 3306F1501 |
Number of Turns | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 500 Ohms 0.2W, 1/5W PC Pins Through Hole Trimmer Potentiometer Cermet 1 Turn Top Adjustment | Adjustment Type | Top Adjustment |
