3223G-1-504E

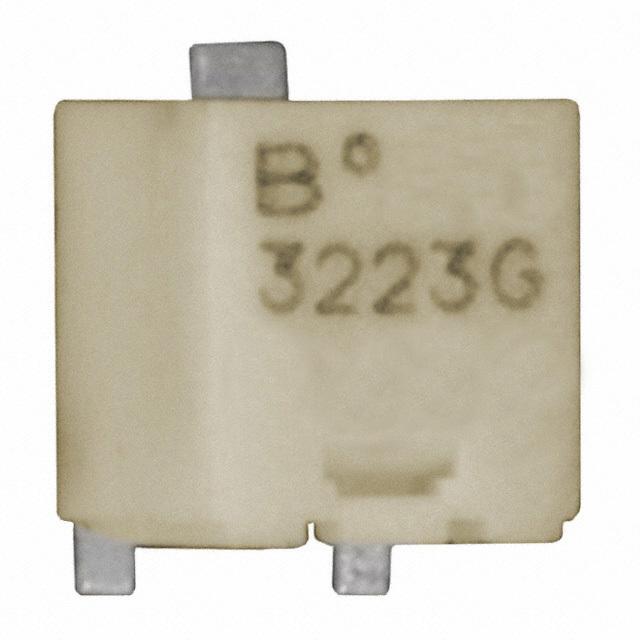

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3223G-1-504E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3223G-1-504E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3223G-1-504E |
|---|---|
| Manufacturer | Bourns, Inc. |
| Description | TRIMMER 500K OHM 0.125W GW SIDE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.70 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3223G-1-504E | Manufacturer | Bourns, Inc. |
|---|---|---|---|
| Description | TRIMMER 500K OHM 0.125W GW SIDE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48141 pcs | Data sheet | 3223 Series |
| Category | Potentiometers, Variable Resistors | Tolerance | ±20% |
| Termination Style | Gull Wing | Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | Rectangular - 0.154" x 0.125" Face x 0.154" H (3.90mm x 3.18mm x 3.90mm) | Series | Trimpot® 3223 - Sealed |
| Resistive Material | Cermet | Resistance | 500 kOhms |
| Power (Watts) | 0.125W, 1/8W | Packaging | Tape & Reel (TR) |
| Other Names | 3223G-1-504ETR | Number of Turns | 11 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 500 kOhms 0.125W, 1/8W Gull Wing Surface Mount Trimmer Potentiometer Cermet 11 Turn Side Adjustment | Adjustment Type | Side Adjustment |
