361V509E

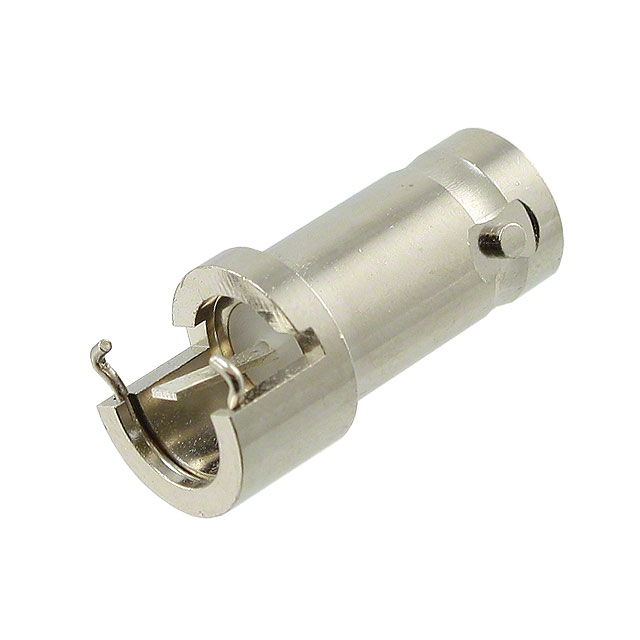

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 361V509E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 361V509E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 361V509E |
|---|---|
| Manufacturer | Bomar (Winchester Electronics) |
| Description | CONN BNC JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.779 | $1.708 | $1.424 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 361V509E | Manufacturer | Bomar (Winchester Electronics) |
|---|---|---|---|
| Description | CONN BNC JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23010 pcs | Data sheet | V-Bite PC Edge Mount |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | V-Bite® |
| Packaging | Tray | Other Names | 991-1034 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.2dB |
| Ingress Protection | Weatherproof | Includes | - |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polyethylene (PE) |
| Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | BNC |
| Center Contact Plating | Tin | Center Contact Material | Brass |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
