1261E504

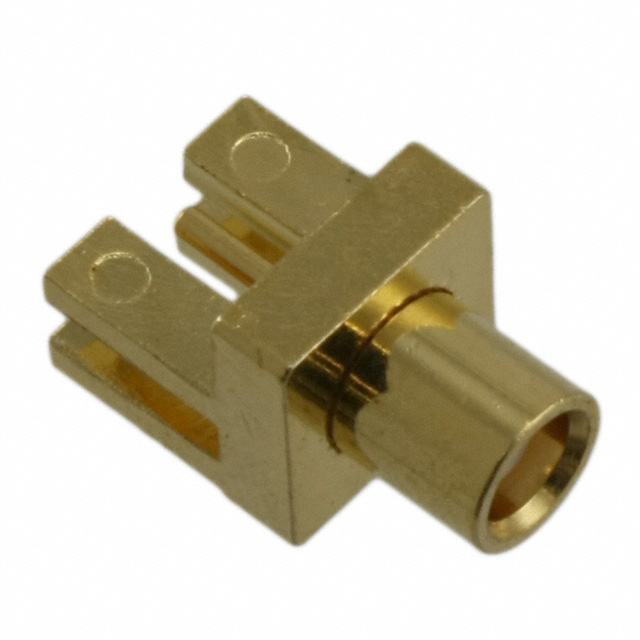

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1261E504 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1261E504 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1261E504 |
|---|---|
| Manufacturer | Bomar (Winchester Electronics) |
| Description | CONN MCX JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1261E504 | Manufacturer | Bomar (Winchester Electronics) |
|---|---|---|---|
| Description | CONN MCX JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5733 pcs | Data sheet | MCX Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | E-Snap™ |
| Packaging | Tray | Other Names | 991-1048 |
| Operating Temperature | -40°C ~ 65°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MCX Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | MCX |
| Center Contact Plating | Gold | Center Contact Material | - |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
