Home > Products > Optoelectronics > LED Indication - Discrete > SM1204UPGC

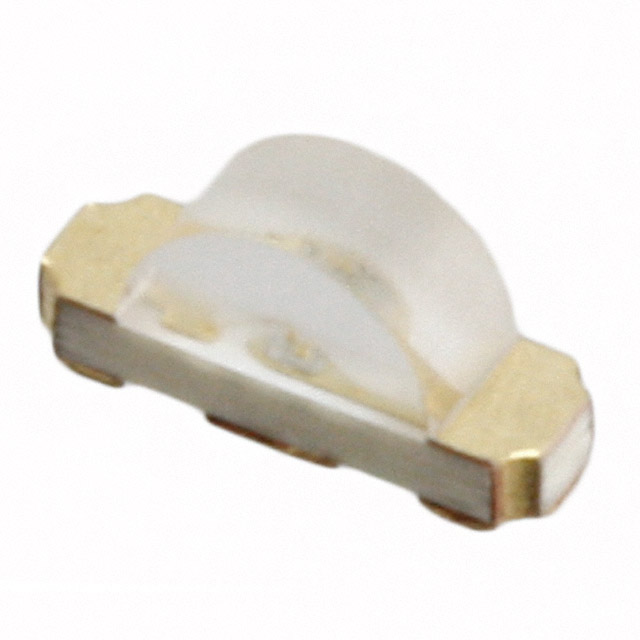

SM1204UPGC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM1204UPGC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SM1204UPGC
Manufacturer	Bivar, Inc.
Description	LED GREEN CLEAR 1204 R/A SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 178442 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.112

Product parameter
Data sheet

Product parameter

Part Number	SM1204UPGC	Manufacturer	Bivar, Inc.
Description	LED GREEN CLEAR 1204 R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	178442 pcs	Data sheet	SM1204UPGC
Category	Optoelectronics	Wavelength - Peak	510nm
Wavelength - Dominant	515nm	Voltage - Forward (Vf) (Typ)	3.3V
Viewing Angle	110°	Supplier Device Package	1204
Size / Dimension	3.20mm L x 1.00mm W	Series	-
Packaging	Tape & Reel (TR)	Package / Case	1204 (3210 Metric)
Other Names	492-1240-2	Mounting Type	Surface Mount, Right Angle
Moisture Sensitivity Level (MSL)	4 (72 Hours)	Millicandela Rating	285mcd
Manufacturer Standard Lead Time	10 Weeks	Lens Transparency	Clear
Lens Style/Size	Rectangle with Domed Top, 2.00mm x 1.00mm	Lens Color	Colorless
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	1.00mm
Features	-	Detailed Description	Green 515nm LED Indication - Discrete 3.3V 1204 (3210 Metric)
Current - Test	20mA	Configuration	Standard
Color	Green
