VBA109

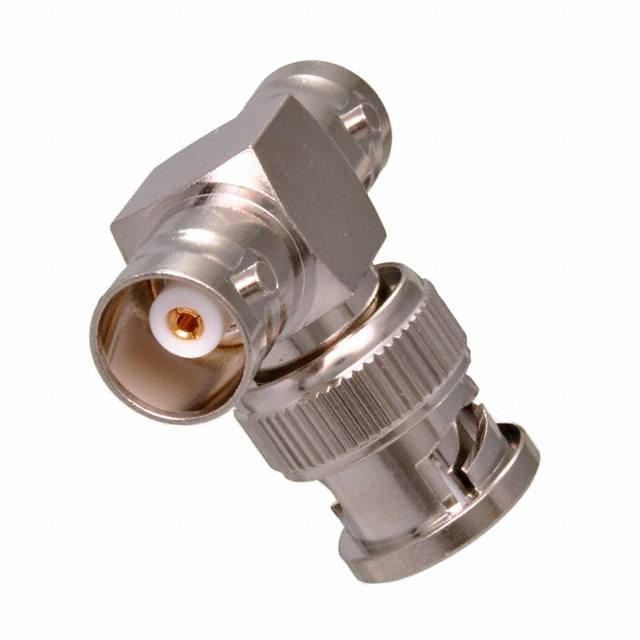

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VBA109 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy VBA109 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | VBA109 |
|---|---|
| Manufacturer | Bel |
| Description | CONN ADAPT PLUG TO JACK BNC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.159 | $3.02 | $2.746 | $2.609 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.54 | $2.265 | $2.128 | $1.881 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | VBA109 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN ADAPT PLUG TO JACK BNC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18463 pcs | Data sheet | VBA109 Drawing |
| Category | Connectors, Interconnects | Style | T-Shape |
| Series | - | Packaging | Bulk |
| Other Names | 1427-1063 | Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock, Bayonet Lock | Dielectric Material | Polyoxymethylene (POM) |
| Detailed Description | Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohm | Convert To (Adapter End) | BNC Jack, Female Socket (2) |
| Convert From (Adapter End) | BNC Plug, Male Pin | Conversion Type | Same Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Brass | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Plug to Jack |
| Adapter Series | BNC to BNC, Dual |
