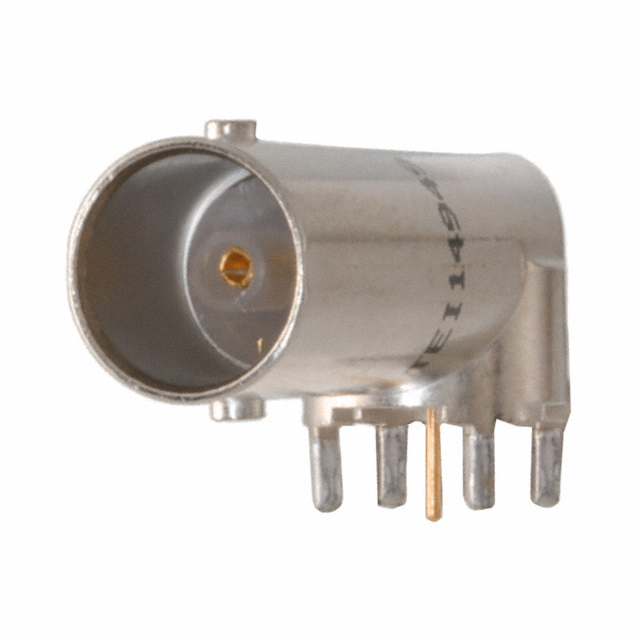

UCBJR220
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UCBJR220 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy UCBJR220 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | UCBJR220 |
|---|---|
| Manufacturer | Bel |
| Description | CONN BNC JACK R/A 75 OHM PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $4.637 | $4.306 | $3.865 | $3.754 | $3.589 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | UCBJR220 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN BNC JACK R/A 75 OHM PCB | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 8631 pcs | Data sheet | UCBJR220 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | 220 |
| Packaging | Bulk | Other Names | 1097-1140 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 75 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
