SCX147-680

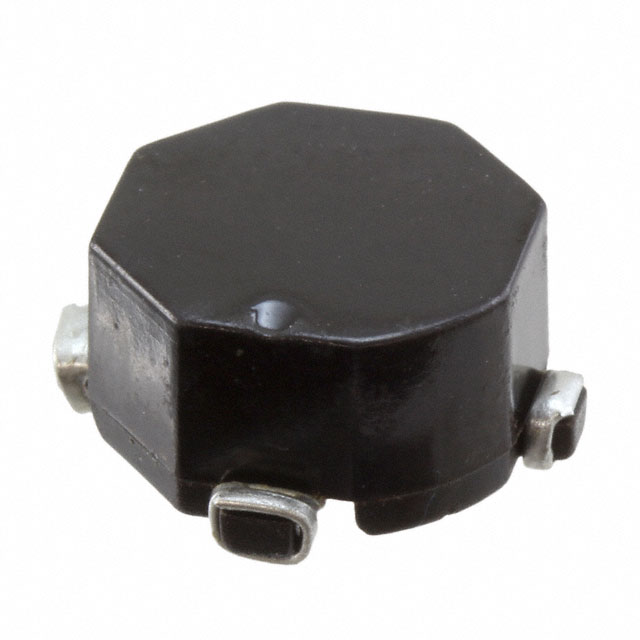

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SCX147-680 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SCX147-680 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SCX147-680 |
|---|---|
| Manufacturer | Bel |
| Description | INDUCT ARRAY 2 COIL 68UH SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SCX147-680 | Manufacturer | Bel |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 68UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4036 pcs | Data sheet | SCX147 Series |
| Category | Inductors, Coils, Chokes | Tolerance | ±20% |
| Size / Dimension | 0.567" L x 0.567" W (14.40mm x 14.40mm) | Shielding | Unshielded |
| Series | SCX147 | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Operating Temperature | - | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 268.32µH |
| Inductance - Connected In Parallel | 68µH | Height | 0.276" (7.00mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 268.32µH Inductance - Connected in Series 68µH Inductance - Connected in Parallel 158 mOhm Max DC Resistance (DCR) - Parallel 1.2A Nonstandard | DC Resistance (DCR) - Series | 630 mOhm Max |
| DC Resistance (DCR) - Parallel | 158 mOhm Max | Current Rating - Series | 600mA |
| Current Rating - Parallel | 1.2A |
