SC5022FH-3R9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC5022FH-3R9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SC5022FH-3R9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC5022FH-3R9 |
|---|---|
| Manufacturer | Bel |
| Description | FIXED IND 3.9UH 9A 10 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | ||||
|---|---|---|---|---|---|
| $0.351 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC5022FH-3R9 | Manufacturer | Bel |
|---|---|---|---|
| Description | FIXED IND 3.9UH 9A 10 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62998 pcs | Data sheet | SC5022FH Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±30% | Supplier Device Package | - |
| Size / Dimension | 0.880" L x 0.640" W (22.35mm x 16.26mm) | Shielding | Unshielded |
| Series | SC5022FH | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 3.9µH | Height - Seated (Max) | 0.315" (8.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 3.9µH Unshielded Wirewound Inductor 9A 10 mOhm Max Nonstandard |
| DC Resistance (DCR) | 10 mOhm Max | Current Rating | 9A |
| Current - Saturation | 15A |
- Related products
- Related news
Related products
- Part#:

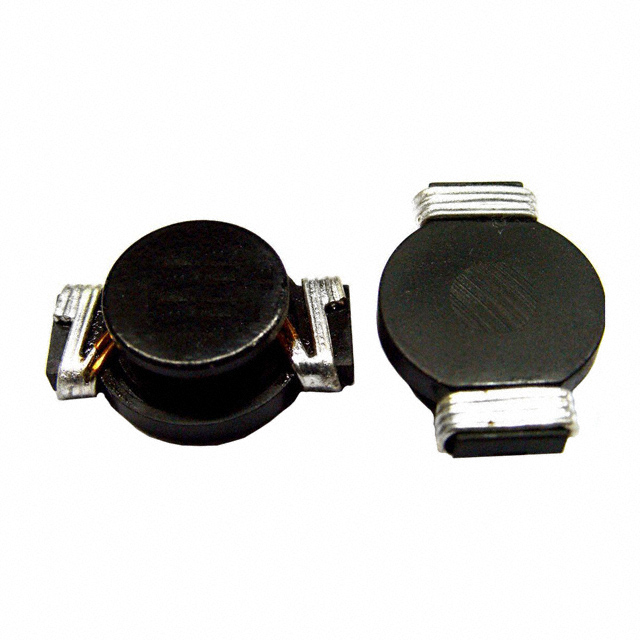

SC5022FH-1R5 - Manufacturers:
