Home > Products > Transformers > Pulse Transformers > S558-5999-Q9-F

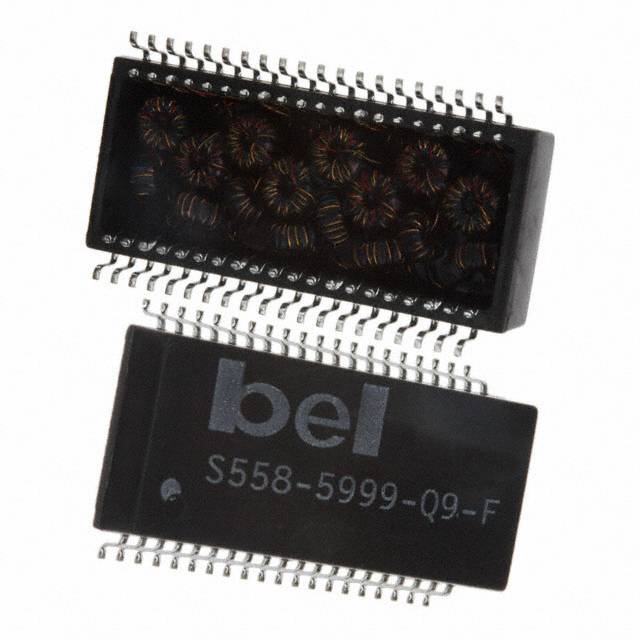

S558-5999-Q9-F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S558-5999-Q9-F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S558-5999-Q9-F
Manufacturer	Bel
Description	MODULE XFRMR LAN 10/100B-TX SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 32108 pcs
Reference Price (In US Dollars)	320 pcs	640 pcs	1600 pcs
Reference Price (In US Dollars)	$1.233	$1.194	$1.154

Product parameter
Data sheet

Product parameter

Part Number	S558-5999-Q9-F	Manufacturer	Bel
Description	MODULE XFRMR LAN 10/100B-TX SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32108 pcs	Data sheet	S558-5999-Q9-F
Category	Transformers	Weight	-
Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver	Transformer Type	LAN 10/100 Base-T
Size / Dimension	1.100" L x 0.476" W (27.94mm x 12.09mm)	Series	-
Packaging	Tape & Reel (TR)	Other Names	507-1474-2 S5585999Q9F Y5585999Q9-F
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	350µH
Height - Seated (Max)	0.236" (5.99mm)	Energy Time (E.T.)	-
