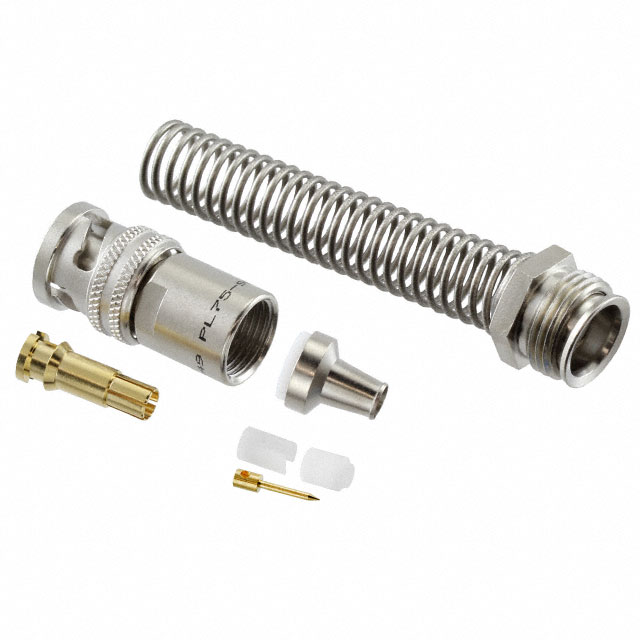

PL75-9BR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PL75-9BR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PL75-9BR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PL75-9BR |
|---|---|
| Manufacturer | Bel |
| Description | CONN TRB PLUG STR SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $13.256 | $11.966 | $11.464 | $10.959 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PL75-9BR | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN TRB PLUG STR SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3405 pcs | Data sheet | PL75 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400V |
| Shield Termination | Wrench Clamp | Series | 70 |
| Packaging | Bulk | Other Names | 1097-1298 PL75-9BR-ND |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 2 pcs - 1 Connector, 1 Strain Relief | Impedance | Non-Constant |
| Housing Color | Silver | Frequency - Max | 500MHz |
| Features | Three Lug | Fastening Type | Bayonet Lock |
| Dielectric Material | - | Detailed Description | TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin (Concentric) |
| Connector Style | TRB, Twinaxial/Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | M17/45-RG-308, TWC-78-2, TWC-124-2 |
| Body Material | Brass | Body Finish | Nickel |
