MAP40-3003

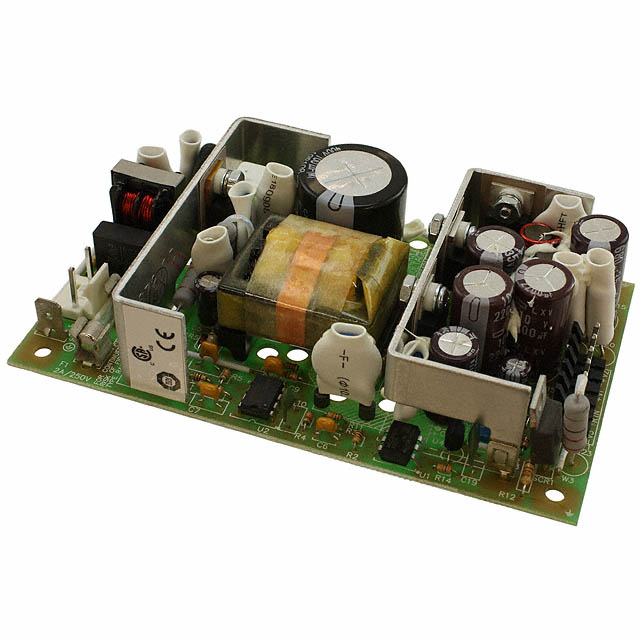

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAP40-3003 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MAP40-3003 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAP40-3003 |
|---|---|
| Manufacturer | Bel |
| Description | AC/DC CONVERTER 5V +/-15V 40W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | MAP40-3003 | Manufacturer | Bel |
|---|---|---|---|
| Description | AC/DC CONVERTER 5V +/-15V 40W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4833 pcs | Data sheet | |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output 4 | - |
| Voltage - Output 3 | -15V | Voltage - Output 2 | 15V |
| Voltage - Output 1 | 5V | Voltage - Isolation | 2.6kV |
| Voltage - Input | 90 ~ 264 VAC | Type | Open Frame |
| Size / Dimension | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | Series | MAP40 |
| Power (Watts) | 40W | Other Names | 179-2510 MAP40-3003-ND MAP403003 Q3525747 |
| Operating Temperature | 0°C ~ 70°C (With Derating) | Number of Outputs | 3 |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Load Required | Yes | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Adjustable Output, Remote Sense, Universal Input | Efficiency | 70% |
| Detailed Description | Open Frame AC DC Converter 3 Output 5V 15V -15V 3A, 2A, 200mA 90 ~ 264 VAC Input | Current - Output (Max) | 3A, 2A, 200mA |
| Approvals | CE | Applications | ITE (Commercial) |
