MAP130-4010

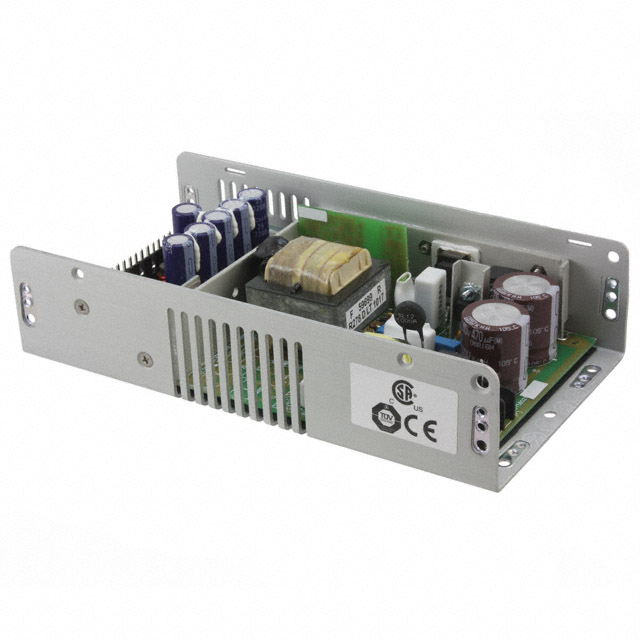

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MAP130-4010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MAP130-4010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MAP130-4010 |
|---|---|
| Manufacturer | Bel |
| Description | AC/DC CONVERTER 5V 12V -5V -12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MAP130-4010 | Manufacturer | Bel |
|---|---|---|---|
| Description | AC/DC CONVERTER 5V 12V -5V -12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5413 pcs | Data sheet | MAP130 Series Datasheet |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output 4 | -12V |
| Voltage - Output 3 | -5V | Voltage - Output 2 | 12V |
| Voltage - Output 1 | 5V | Voltage - Isolation | 2.6kV |
| Voltage - Input | 90 ~ 132 VAC, 175 ~ 264 VAC | Type | Open Frame |
| Size / Dimension | 8.50" L x 4.50" W x 2.00" H (215.9mm x 114.3mm x 50.8mm) | Series | MAP130 |
| Power (Watts) | 130W | Other Names | 179-2509 MAP130-4010-ND MAP1304010 Q549907 |
| Operating Temperature | 0°C ~ 70°C (With Derating) | Number of Outputs | 4 |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Minimum Load Required | Yes | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Adjustable Output, Remote Sense, Universal Input | Efficiency | 80% |
| Detailed Description | Open Frame AC DC Converter 4 Output 5V 12V -5V -12V 20A, 5A, 1A, 3A 90 ~ 132 VAC, 175 ~ 264 VAC Input | Current - Output (Max) | 20A, 5A, 1A, 3A |
| Approvals | CB, cCSAus, CE | Applications | ITE (Commercial) |
