CPN1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPN1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPN1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPN1 |
|---|---|
| Manufacturer | Bel |
| Description | CONN N PLUG STR 50 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.426 | $2.323 | $2.121 | $2.02 | $1.919 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.717 | $1.616 | $1.414 | $1.343 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPN1 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN N PLUG STR 50 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27948 pcs | Data sheet | CPN1 DrawingCPN1 Datasheet Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 012446238145 367-0059 367-0059-ND 367-1059 CPN-1 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

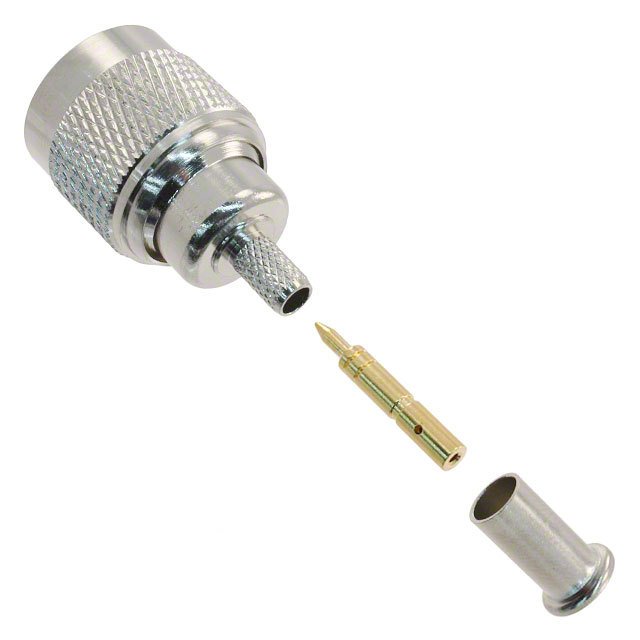

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Sleeve | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | - | Detailed Description | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Crimp or Solder |
| Contact Termination | Crimp or Solder | Connector Type | Plug, Male Pin |
| Connector Style | N Type | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-58 |
| Body Material | Brass | Body Finish | Nickel |
