CPMC782
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPMC782 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPMC782 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPMC782 |
|---|---|
| Manufacturer | Bel |
| Description | CONN BNC PLUG STR 75 OHM CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.972 | $0.933 | $0.855 | $0.816 | $0.777 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.68 | $0.661 | $0.564 | $0.525 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPMC782 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN BNC PLUG STR 75 OHM CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63187 pcs | Data sheet | CPMC782 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 012446237650 367-0045 367-0045-ND 367-1045 CPMC-78-2 |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

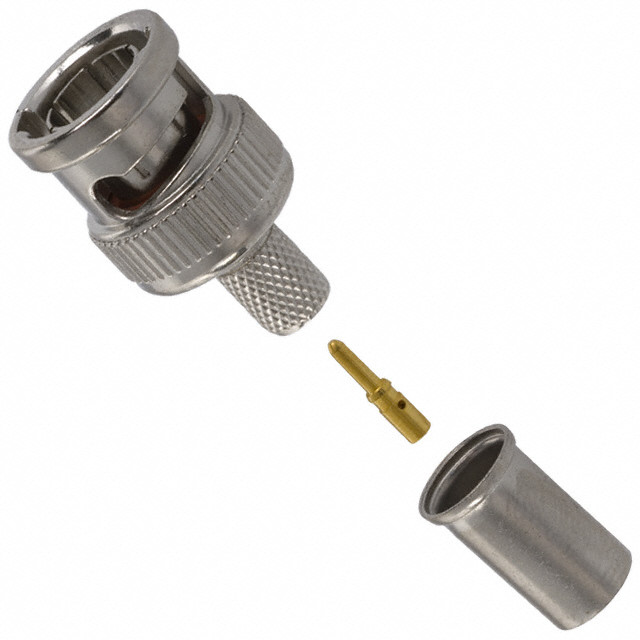

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Sleeve | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 2GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp or Solder |
| Contact Termination | Crimp or Solder | Connector Type | Plug, Male Pin |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-59, 62, Belden 1505A |
| Body Material | Brass | Body Finish | Nickel |
