CPF-56-ALX

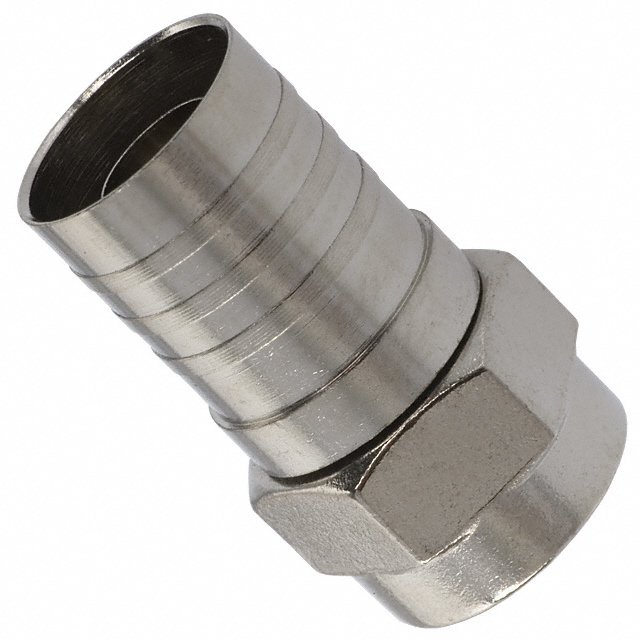

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CPF-56-ALX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CPF-56-ALX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CPF-56-ALX |
|---|---|
| Manufacturer | Bel |
| Description | CONN F PLUG STR 75 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.184 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CPF-56-ALX | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN F PLUG STR 75 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106282 pcs | Data sheet | CPF-56-ALX Drawing (25-7033) |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Crimp | Series | - |
| Packaging | Bulk | Other Names | 012446003903 25-7033 367-0024 367-0024-ND 367-1024 CPF56ALX |
| Operating Temperature | -55°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 100 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Silver | Frequency - Max | 750MHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | - | Detailed Description | F Type Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) |
| Contact Termination | - | Connector Type | Plug, Male Pin |
| Connector Style | F Type | Center Contact Plating | - |
| Center Contact Material | - | Cable Group | RG-6 Tri, Quad Shield Plenum |
| Body Material | Brass | Body Finish | Nickel |
