CBBJR26

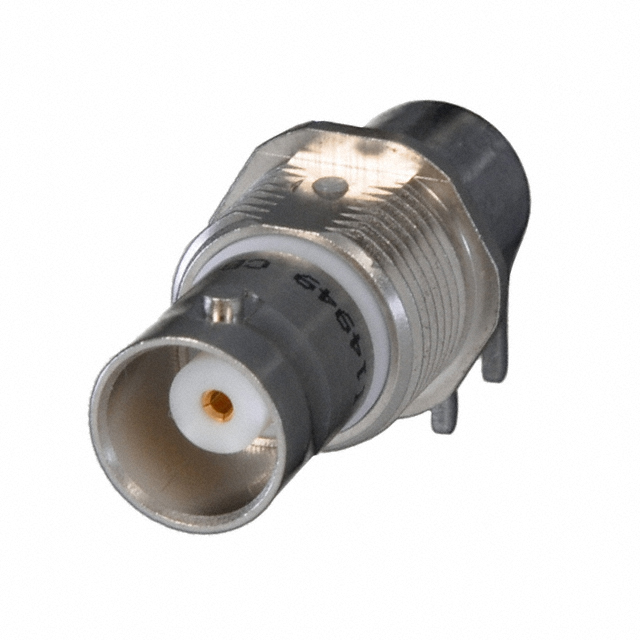

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CBBJR26 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CBBJR26 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CBBJR26 |
|---|---|
| Manufacturer | Bel |
| Description | CONN BNC JACK R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $14.912 | $14.253 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CBBJR26 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN BNC JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2681 pcs | Data sheet | CBBJR26 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | 20 |
| Packaging | Bulk | Other Names | 1097-1044 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 1 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC Connector Jack, Female Socket 50 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC | Center Contact Plating | Gold |
| Center Contact Material | - | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
