BJ3158

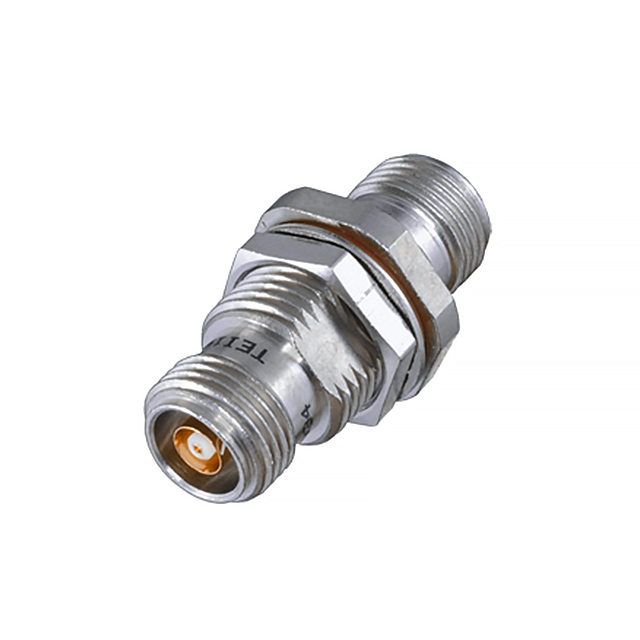

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BJ3158 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BJ3158 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BJ3158 |
|---|---|
| Manufacturer | Bel |
| Description | CONN ADAPT JCK-JCK TTM TWIN/TRI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $18.481 | $17.393 | $16.849 | $15.762 | $14.893 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | BJ3158 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN ADAPT JCK-JCK TTM TWIN/TRI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2512 pcs | Data sheet | BJ3158 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | 3150 | Packaging | Bulk |
| Other Names | 1097-1247 BJ3158-ND |
Operating Temperature | - |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | Non-Constant |
| Frequency - Max | 500MHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector TTM Twinaxial/Triaxial Jack, Female Socket To TTM Twinaxial/Triaxial Jack, Female Socket Non-Constant | Convert To (Adapter End) | TTM Twinaxial/Triaxial Jack, Female Socket |
| Convert From (Adapter End) | TTM Twinaxial/Triaxial Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | TTM Twinaxial/Triaxial to TTM Twinaxial/Triaxial |
