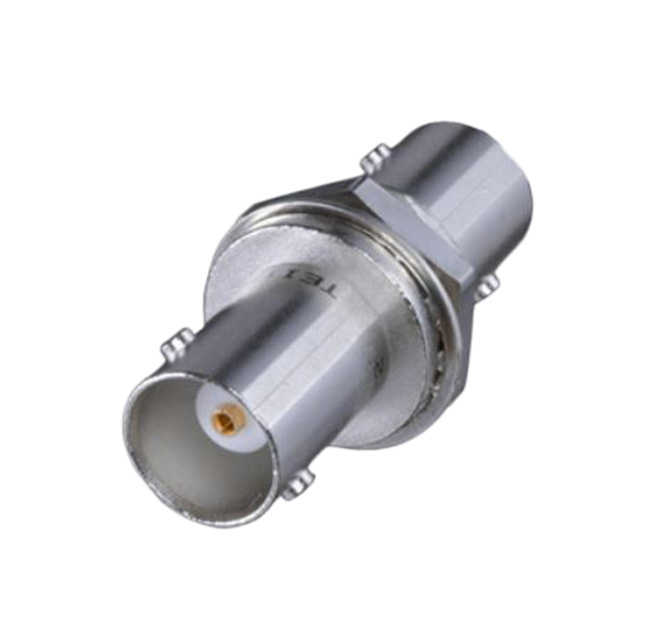

BJ224
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BJ224 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BJ224 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BJ224 |
|---|---|
| Manufacturer | Bel |
| Description | CONN ADAPT JACK-JACK BNC 50OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $5.169 | $4.799 | $4.307 | $4.184 | $3.999 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | BJ224 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN ADAPT JACK-JACK BNC 50OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7965 pcs | Data sheet | BJ224, UBJ224 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | 220 | Packaging | Bulk |
| Other Names | 1097-1319 BJ224-ND |
Operating Temperature | - |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Features | - |
| Fastening Type | Bayonet Lock, Bayonet Lock | Dielectric Material | - |
| Detailed Description | Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohm | Convert To (Adapter End) | BNC Jack, Female Socket |
| Convert From (Adapter End) | BNC Jack, Female Socket | Conversion Type | Same Series |
| Center Gender | Female to Female | Center Contact Plating | Gold |
| Center Contact Material | - | Body Material | Brass |
| Body Finish | Nickel | Adapter Type | Jack to Jack |
| Adapter Series | BNC to BNC |
