BJ159AC-201

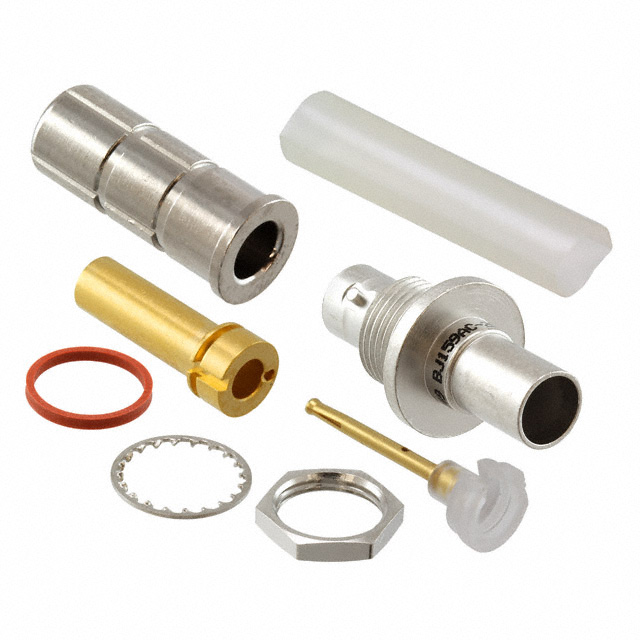

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BJ159AC-201 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BJ159AC-201 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BJ159AC-201 |
|---|---|
| Manufacturer | Bel |
| Description | CONN TRS JACK STR CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.244 | $13.408 | $12.989 | $12.816 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BJ159AC-201 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN TRS JACK STR CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2692 pcs | Data sheet | BJ159AC Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400V |
| Shield Termination | Crimp | Series | 150 |
| Packaging | Bulk | Other Names | 1097-1197 BJ159AC201 |
| Operating Temperature | -65°C ~ 200°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Heat Shrink, 1 Nut, 1 Washer | Impedance | Non-Constant |
| Housing Color | Silver | Frequency - Max | 500MHz |
| Features | Three Lug | Fastening Type | Bayonet Lock |
| Dielectric Material | - | Detailed Description | TRS, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Crimp |
| Contact Termination | Crimp | Connector Type | Jack, Female Socket (Concentric) |
| Connector Style | TRS, Twinaxial/Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | M17/176-00002 |
| Body Material | Brass | Body Finish | Nickel |
