ADT-2686-TM-SMF-02

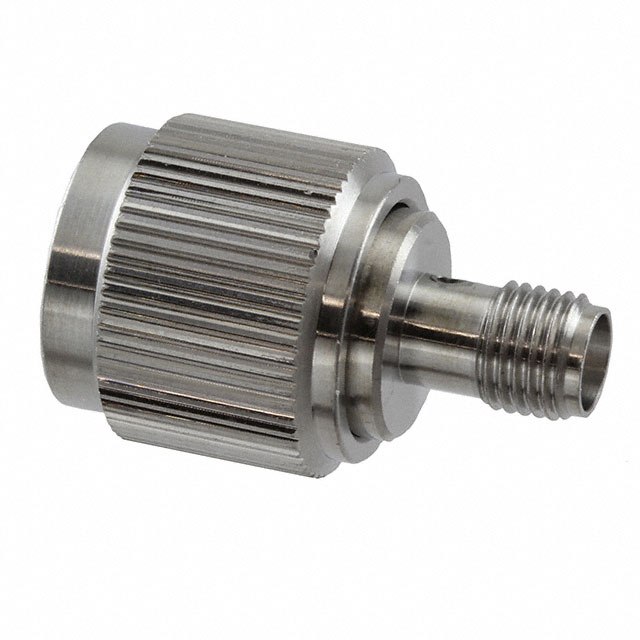

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADT-2686-TM-SMF-02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADT-2686-TM-SMF-02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADT-2686-TM-SMF-02 |
|---|---|
| Manufacturer | Bel |
| Description | CONN ADAPT TNC PLUG TO SMA JACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $24.404 | $22.968 | $22.251 | $20.815 | $19.667 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ADT-2686-TM-SMF-02 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN ADAPT TNC PLUG TO SMA JACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1709 pcs | Data sheet | ADT-2686-TM-SMF-02 Drawing |
| Category | Connectors, Interconnects | Style | Straight |
| Series | - | Packaging | Bulk |
| Other Names | 652-1033 ADT-2686-TM-SMF-02-ND |
Operating Temperature | - |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Frequency - Max | 18GHz | Features | - |
| Fastening Type | Threaded, Threaded | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | Adapter Coaxial Connector TNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohm | Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | TNC Plug, Male Pin | Conversion Type | Between Series |
| Center Gender | Female to Male | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Body Material | Stainless Steel |
| Body Finish | - | Adapter Type | Plug to Jack |
| Adapter Series | SMA to TNC |
