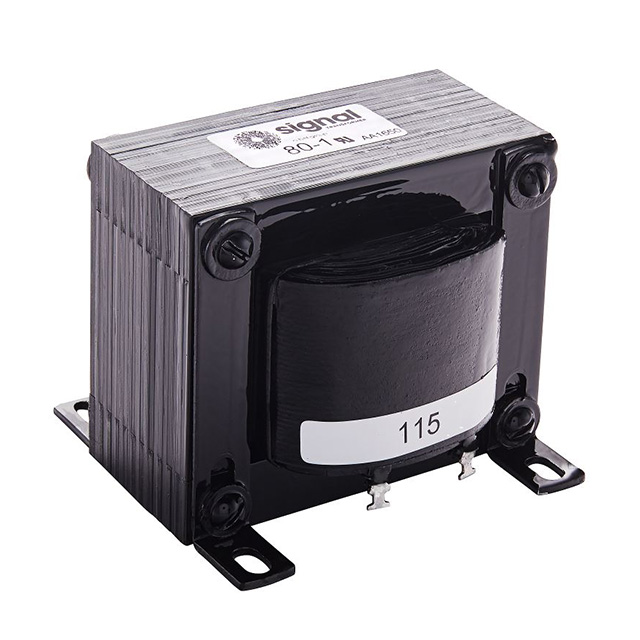

80-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 80-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 80-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 80-1 |
|---|---|
| Manufacturer | Bel |
| Description | XFRMR LAMINATED 80VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $14.343 | $12.654 | $12.232 | $11.22 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 80-1 | Manufacturer | Bel |
|---|---|---|---|
| Description | XFRMR LAMINATED 80VA CHAS MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3143 pcs | Data sheet | Rectifier Power Transformers |
| Category | Transformers | Weight | 4 lbs (1.8kg) |
| Voltage - Secondary (Full Load) | Parallel 40V, Series 80V | Voltage - Primary | 105V, 115V, 125V, 230V |
| Voltage - Isolation | 1500Vrms | Type | Laminated Core |
| Termination Style | Solder, Quick Connect | Size / Dimension | 85.70mm L x 77.70mm W |
| Series | - | Secondary Winding(s) | Dual |
| Primary Winding(s) | Single, Multiple Taps | Power - Max | 80 VA |
| Other Names | 595-1858 80ST-1 80ST-1-ND |
Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 71.40mm |
| Current - Output (Max) | Parallel 2A, Series 1A | Center Tap | Yes |
