5810112011

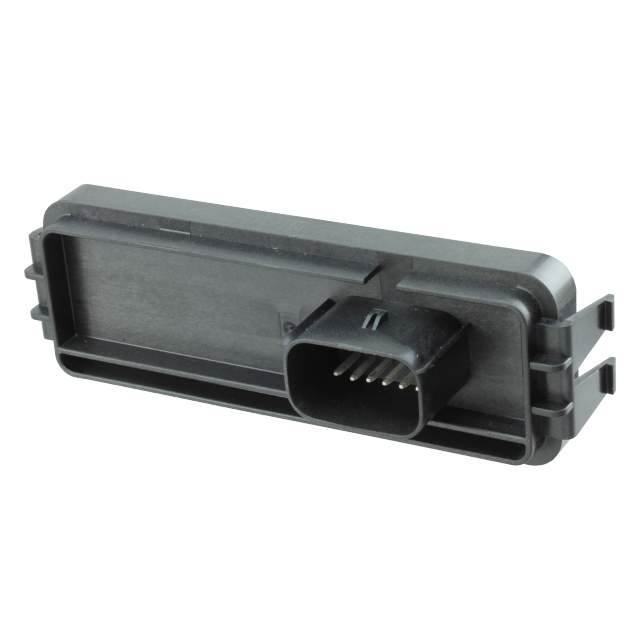

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5810112011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5810112011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5810112011 |
|---|---|
| Manufacturer | Bel |
| Description | MODICE ME-MX 12 POSITION |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.002 | $3.64 | $3.549 | $3.276 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.094 | $2.821 | $2.639 | $2.42 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5810112011 | Manufacturer | Bel |
|---|---|---|---|
| Description | MODICE ME-MX 12 POSITION | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12353 pcs | Data sheet | ModICE®, SHS Brochure581-01-12-011 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | ModICE® MX |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 116-1101 C581-01-12-011 C581-01-12-011-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polymer, Glass Filled |
| Insulation Height | 1.610" (40.90mm) | Insulation Color | Black |
| Ingress Protection | IP67, IP69K | Features | - |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.138" (3.50mm) |
| Current Rating | 10A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
