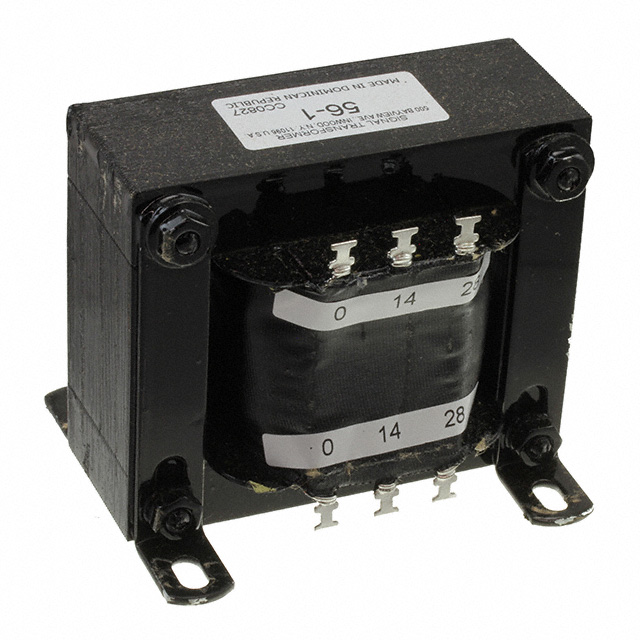

56-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 56-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 56-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 56-1 |
|---|---|
| Manufacturer | Bel |
| Description | XFRMR LAMINATED 56VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $15.61 | $15.087 | $14.047 | $13.839 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 56-1 | Manufacturer | Bel |
|---|---|---|---|
| Description | XFRMR LAMINATED 56VA CHAS MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2387 pcs | Data sheet | Rectifier Power Transformers |
| Category | Transformers | Weight | 3.5 lbs (1.6kg) |
| Voltage - Secondary (Full Load) | Parallel 28V, Series 56V | Voltage - Primary | 105V, 115V, 125V, 230V |
| Voltage - Isolation | 1500Vrms | Type | Laminated Core |
| Termination Style | Solder, Quick Connect | Size / Dimension | 85.70mm L x 73.00mm W |
| Series | - | Secondary Winding(s) | Dual |
| Primary Winding(s) | Single, Multiple Taps | Power - Max | 56 VA |
| Other Names | 56-1-ND 595-1855 |
Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 71.40mm |
| Current - Output (Max) | Parallel 2A, Series 1A | Center Tap | Yes |
