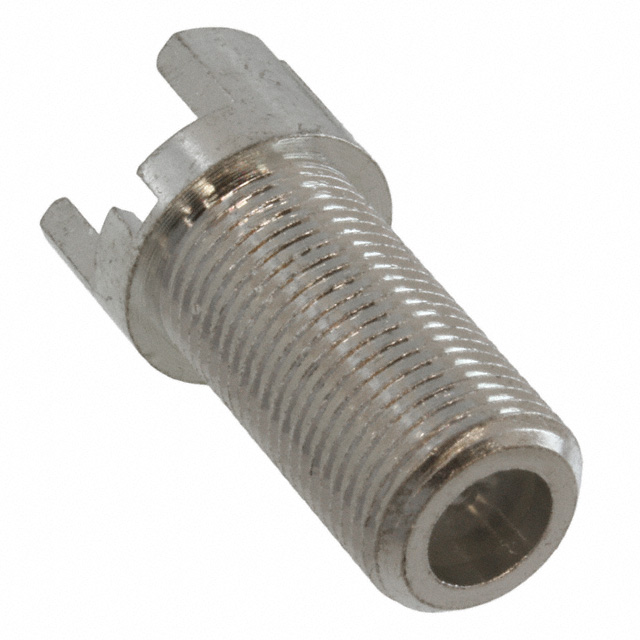

25-7630
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 25-7630 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 25-7630 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 25-7630 |
|---|---|
| Manufacturer | Bel |
| Description | CONN F JACK STR 75 OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.423 | $0.372 | $0.35 | $0.335 | $0.321 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.291 | $0.262 | $0.233 | $0.211 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 25-7630 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN F JACK STR 75 OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 113269 pcs | Data sheet | 25-7630 |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 257630 367-1221 |
Operating Temperature | - |
| Number of Ports | 1 | Mounting Type | Board Edge, End Launch |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 75 Ohm | Housing Color | Silver |
| Frequency - Max | 1GHz | Features | - |
| Fastening Type | Threaded | Dielectric Material | Polypropylene (PP) |
| Detailed Description | F Type Connector Jack, Female Socket 75 Ohm Board Edge, End Launch Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | F Type |
| Center Contact Plating | Tin | Center Contact Material | Phosphor Bronze |
| Cable Group | - | Body Material | Brass |
| Body Finish | Tin |
