2250506-1

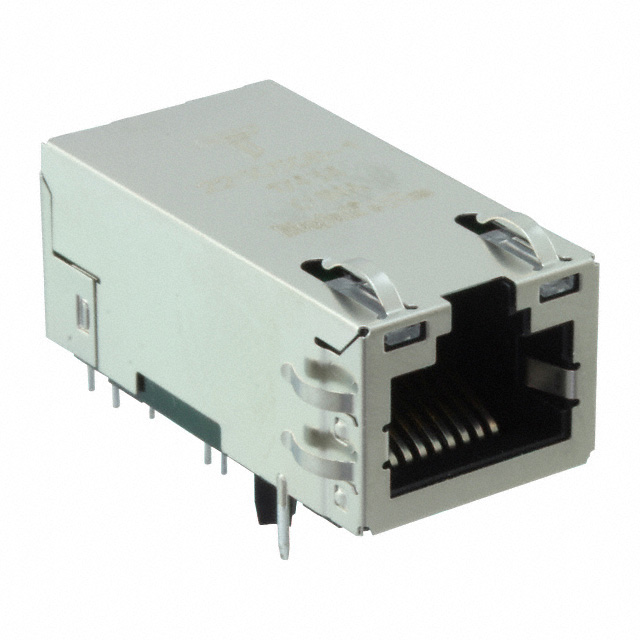

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2250506-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2250506-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2250506-1 |
|---|---|
| Manufacturer | Bel |
| Description | CONN MAGJACK 1PORT 1G BASE-T PCB |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.898 | $2.779 | $2.537 | $2.416 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.295 | $2.054 | $1.933 | $1.691 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2250506-1 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 1G BASE-T PCB | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 20553 pcs | Data sheet | 2250506-x Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Stainless Steel | Series | MagJack® |
| Packaging | Tray | Other Names | 1419-1062 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | LED Color | Green - Orange, Yellow |
| Housing Material | Thermoplastic | Height Above Board | 0.536" (13.61mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 1G Base-T, AutoMDIX, Power over Ethernet (PoE) |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 1G Base-T, AutoMDIX, Power over Ethernet (PoE) |
