1840156-4

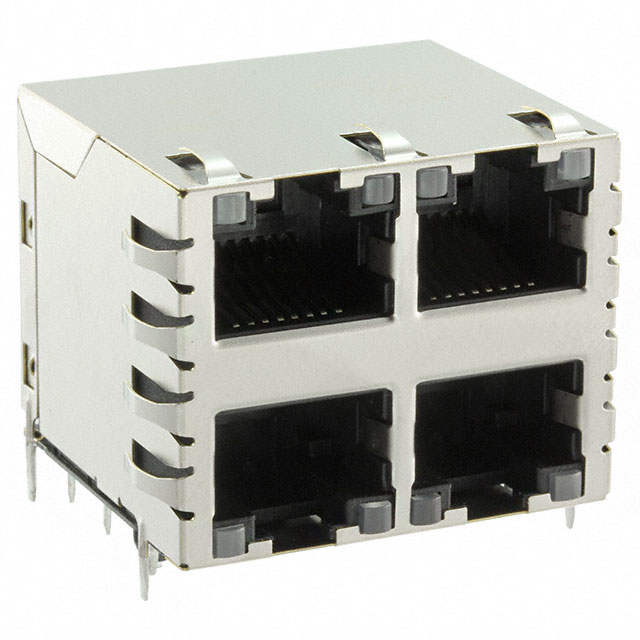

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1840156-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1840156-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1840156-4 |
|---|---|
| Manufacturer | Bel |
| Description | CONN MAGJACK 4PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1840156-4 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN MAGJACK 4PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5904 pcs | Data sheet | 1840156 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up and Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | Mag45 |
| Packaging | Tray | Other Names | 1419-1034 1840156-4-ND 1840156-4TRP 1840156-4TRP-ND 18401564 |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 2 | Number of Ports | 4 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Green, Yellow - Green, Yellow | Housing Material | Thermoplastic |
| Height Above Board | 0.992" (25.19mm) | Features | Board Guide, Decoupling Capacitance |
| Detailed Description | 4 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 50.0µin (1.27µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100/1000 Base-T, AutoMDIX |
