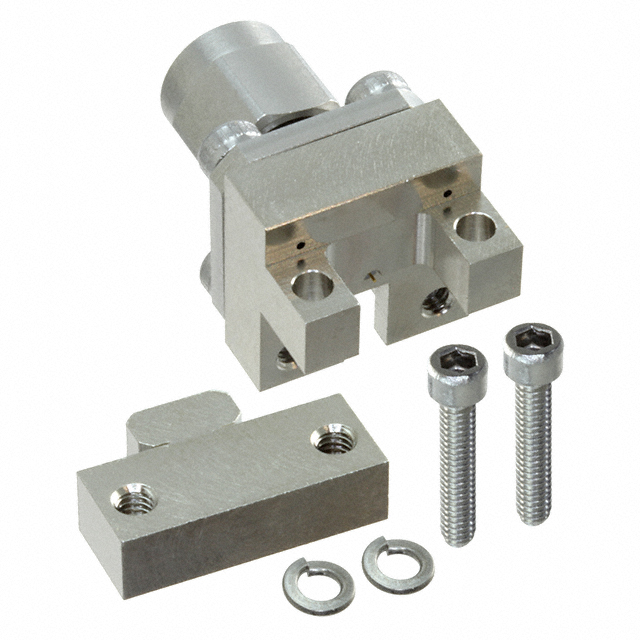

145-0801-802
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 145-0801-802 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 145-0801-802 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 145-0801-802 |
|---|---|
| Manufacturer | Bel |
| Description | CONN 2.92MM PLG STR 50OHM EDGEMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $25.175 | $23.694 | $22.954 | $21.473 | $20.288 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 145-0801-802 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN 2.92MM PLG STR 50OHM EDGEMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1655 pcs | Data sheet | 145-0801-802 DrawingSMK Conn Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Screw | Series | SMK |
| Packaging | Bulk | Other Names | J10418 |
| Operating Temperature | -40°C ~ 85°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 5 pcs - 1 Connector, 2 Screws, 2 Spring Washers | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 40GHz |
| Features | Mounting Hardware | Fastening Type | Threaded |
| Dielectric Material | Polyetherimide (PEI); Polytetrafluoroethylene (PTFE) | Detailed Description | 2.92mm Connector Plug, Male Pin 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | 2.92mm | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Stainless Steel | Body Finish | - |
