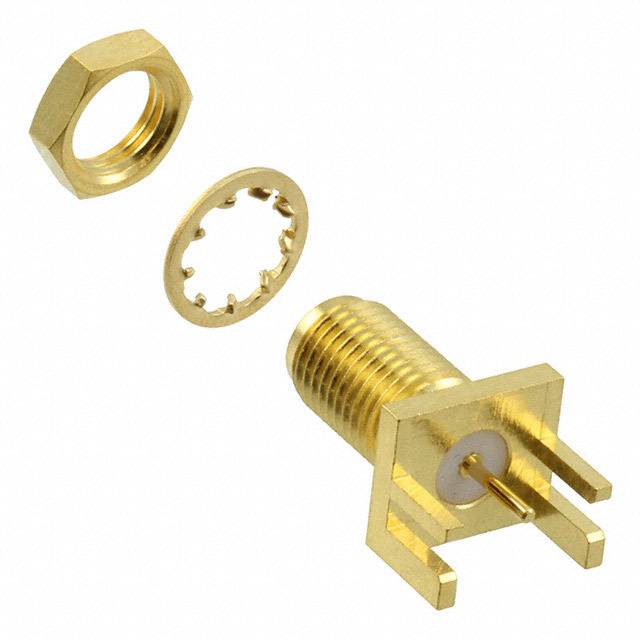

142-4701-801
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142-4701-801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142-4701-801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142-4701-801 |
|---|---|
| Manufacturer | Bel |
| Description | CONN RPSMA JCK STR 50OHM EDGEMNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.948 | $1.869 | $1.713 | $1.635 | $1.557 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.363 | $1.324 | $1.129 | $1.051 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142-4701-801 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN RPSMA JCK STR 50OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29997 pcs | Data sheet | 142-4701-801/806 Spec142-4701-801/506 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1424701801 J917 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch; Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 18GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | RP-SMA Connector Jack, Male Pin 50 Ohm Board Edge, End Launch; Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | RP-SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
