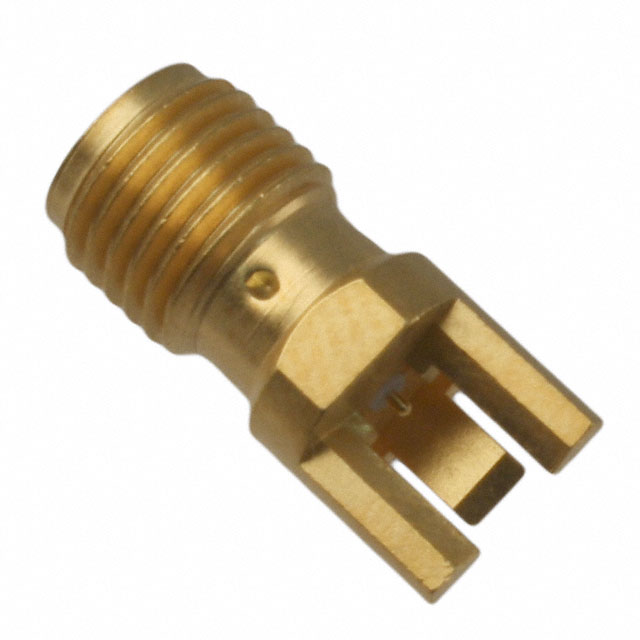

142-1701-821
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142-1701-821 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142-1701-821 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142-1701-821 |
|---|---|
| Manufacturer | Bel |
| Description | CONN SMA JACK STR 50OHM EDGE MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.659 | $6.182 | $5.548 | $5.39 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.756 | $4.439 | $4.344 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142-1701-821 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMA JACK STR 50OHM EDGE MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7688 pcs | Data sheet | 142-1701-821,830 Drawing142-0761-811 Assembly InstrEnd Launch Connectors Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 170V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 1421701821 J10106 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Board Edge, End Launch | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 26.5GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
