142-0801-301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142-0801-301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142-0801-301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142-0801-301 |
|---|---|
| Manufacturer | Bel |

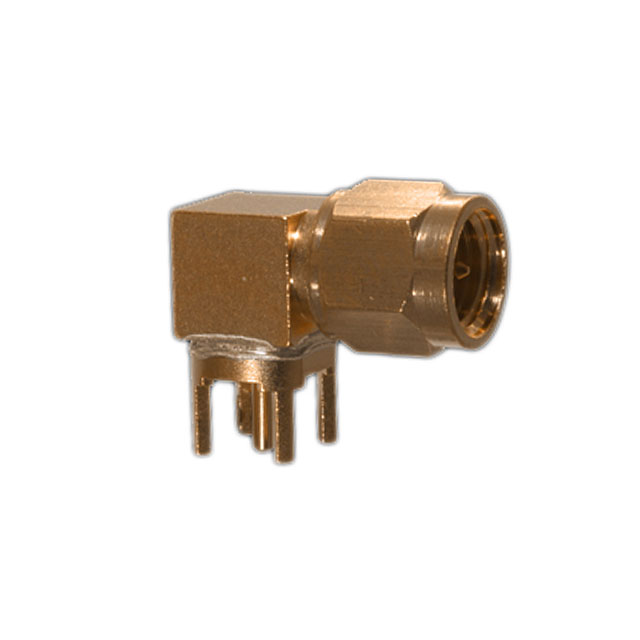

| Description | CONN SMA PLUG R/A 50OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.047 | $8.168 | $7.825 | $7.336 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.092 | $6.70 | $6.505 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142-0801-301 | Manufacturer | Bel |
|---|---|---|---|
| Description | CONN SMA PLUG R/A 50OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4909 pcs | Data sheet | 142-0801-301, 306 Drawing142-0801-301, 306 Spec |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | 142-0801-301-ND 1420801301 J10226 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 18GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMA Connector Plug, Male Pin 50 Ohm Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | SMA | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
